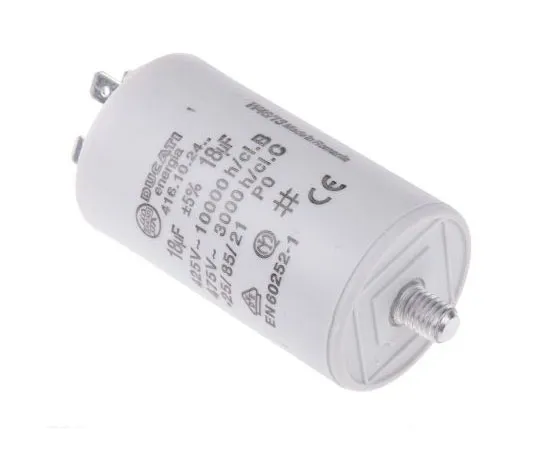

63-7519-79 Ducati Energia 18μF Polypropylene Capacitor PP 450V ac ±5% Tolerance Stud Mount 4.16.10 Series 4.16.10.24.64
model:
63-7519-79
brand:
Ducati Energia
Product Description
Product Model: 63-7519-79Product Brand: Ducati Energia […]
Contact Us
Product Details
Product Model: 63-7519-79
Product Brand: Ducati Energia
Features
- VDE 560-8, CEI 33-3, SEV 1029. Fixing nut not supplied. 4.16.10/15 Series. Ducati 4.16.10/15 series are snap-in (quick connect) Polypropylene film capacitors. They are an electric motor capacitor ***d to start and run. The case and cover feature a self-extinguishing plastic material, the capacitive element is sealed with polyurethane resin. These 4.16.10 series film capacitors are supplied with the main international approvals (IMQ-VDE-UL-GOST). Operating temperature -25°C to +85°C. Features and benefits. Small and Compact Self-healing property avoiding short-circuits Low losses non-inductive winding 40mm Diameter No leakage risk IP00 Protection rating. Applications. Motor control and drive
Spec
- Quantity:1box(100pieces)
- Capacitance : 18µF
- Voltage : 450V ac
- Mounting Type : Stud Mount
- Tolerance : ±5%
- Series : 4.16.10
- Height : 70mm
- Dimensions : 40 (Dia.) x 70mm
- Dielectric : PP
- CODE No.:172-8196
