Electronic/Electrical Parts and Controll Equipments

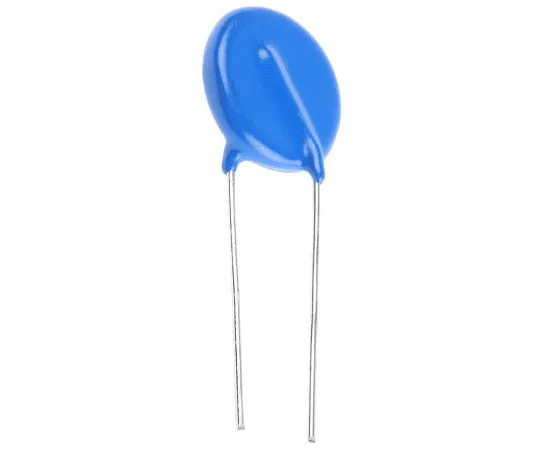

63-7470-29 EPCOS Standard Series Metal Oxide Varistor 380pF 100A, Clamping 1240V, Varistor 750V B72220S0461K101
Product Description
Product Model: 63-7470-29Product Brand: EPCOS Features […]
Contact Us
Product Details
Product Model: 63-7470-29
Product Brand: EPCOS
Features
- UL, CSA, VDE. Metal Oxide Varistors Standard Series. Standard radial epoxy-coated MOV with tinned-copper leads. Tinned copper wire leads with a ceramic body coated with epoxy resin Rated for surge current (8//20 μs) and for energy (2ms)
Spec
- Quantity:1bag(5pieces)
- Varistor Voltage : 750V
- Maximum AC Voltage Rating : 460V
- Maximum DC Voltage Rating : 615V
- Clamping Voltage : 1240V
- Clamping Current : 100A
- Energy : 195J
- Series : Standard
- Diameter : 21.5mm
- Maximum Surge Current : 8000A
- Capacitance : 380pF
- Thickness : 6.8mm
- Dimensions : 21.5 (Dia.) x 6.8mm
- Lead Pitch : 10mm
- CODE No.:289-7339
