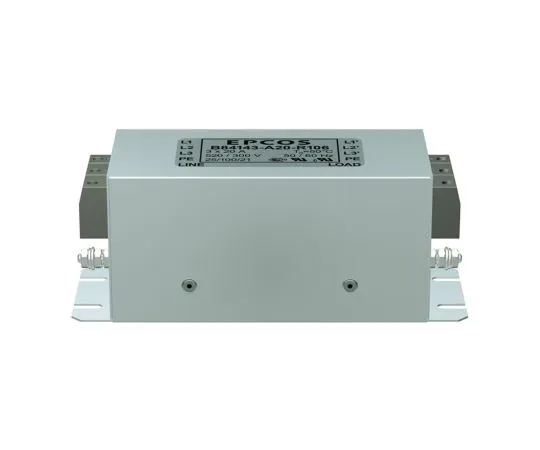

63-6658-27 RFI Filter 3-Phase 35 A Flange Mount 3.4 mA 1 Stage 1.7 mΩ UL 1283 B84143A0035R106
Product Description
Product Model: 63-6658-27Product Brand: EPCOS Features […]
Contact Us
Product Details
Product Model: 63-6658-27
Product Brand: EPCOS
Features
- IEC60939
- UL1283, CSA22.2 No. 8
- B84143A*R106 Series
- Easy to integrate 3-line filter ho***d in small metal case Optimized for long motor cable and operation at full load High insertion loss Optimized leakage current
- Applications: Frequency converters for motor drives (Elevators, pumps, conveyor systems, HVAC systems, etc.), power supplies, textile machinery, packaging machinery, machine tools, etc. IP20 rating
Spec
- Quantity: 1 Piece
- Maximum rated current: 35 A
- Maximum rated voltage: 520 V ac
- Mounting Type: Flange Mount
- *** styles: screws
- Phase: 3
- Series: B84143A*R106
- Operating frequency: 50 → 60 Hz
- Length: 200 mm
- Depth: 72.5 mm
- Height: 71 mm
- Dimensions: 200 x 72.5 x 71 mm
- Operating temperature Min: -25°C
- Operating temperature Max: +100°C
- Resistance: 1.7 mΩ
- Standard Compliance: UL 1283
- RoHS compliance status: Compliance
- Securities Code: 467-905
