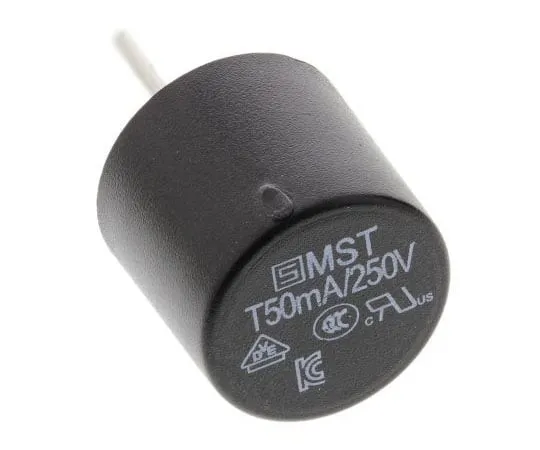

63-7465-73 Schurter 50mA Radial T Leaded PCB Mount F***, 250V ac 34.6602
Product Description
Product Model: 63-7465-73Product Brand: Schurter Featur […]
Contact Us
Product Details
Product Model: 63-7465-73
Product Brand: Schurter
Features
- EN 60127, IEC 127-3//3, DIN-VDE 0820. Microf*** f***s - MSF and MST series. Miniature f***s for soldering onto PCB or carriers. Fast-acting (MSF) or time-delay (MST) f***s. Low breaking capacity.
Spec
- Quantity:1bag(10pieces)
- Current Rating : 50mA
- Lead Orientation : Radial
- Voltage Rating : 250V ac
- F*** Speed : T
- Body Material : Thermoplastic
- Body Diameter : 8.5mm
- Body Height : 8.5mm
- Wire Length : 4.3mm
- Wire Pitch : 5.08mm
- Breaking Capacity at Maximum Voltage Rating : 35 A @ 250 V ac, 50 A @ 125 V dc
- Minimum Operating Temperature : -55°C
- Maximum Operating Temperature : +125°C
- Wire Diameter : 0.64mm
- CODE No.:284-5192
