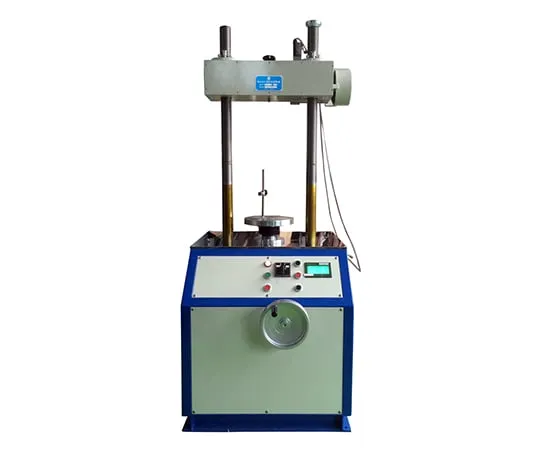

62-0860-81 Universal Compression Tester Of Soil 100kN S-182a
Product Description
Product Model: 62-0860-81Product Brand: Nishinihonshike […]
Contact Us
Product Details
Product Model: 62-0860-81
Product Brand: Nishinihonshikenki
Features
- The universal soil compression tester is a strain control type compression tester using an electric screw jack.
- The strain rate can be easily changed and the cross head can be moved up and down by the electric motor.
- It is ***d for various soil strain control tests.
- By incorporating an automatic measurement system, it is possible to perform data collection automatically from the start of the test.
Spec
- Body dimensions: W800 x D700 x H1900mm
- Strut-to-strut dimensions: 400mm
- Loading device: Screw jack type
- Loading capacity: MAX100kN
- Loading stroke: Approximately 100mm
- Drive system: AC servo motor
- Strain speed: 0.10 - 20.0, and 50.0mm/min
- Crosshead: Electric elevating type:
- Power supply: 3 phase 200V
- *200kN can also be manufactured.
