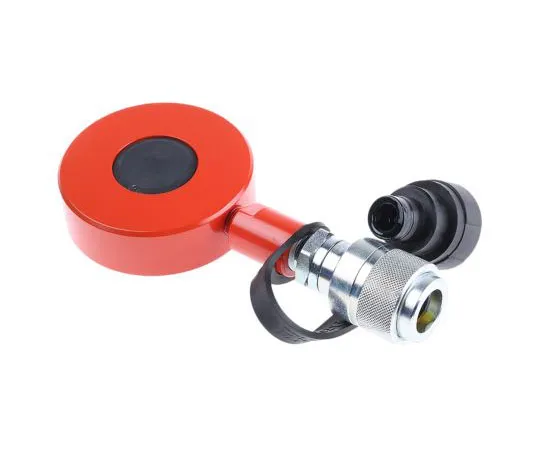

63-7419-81 Hi-Force Single, Portable Low Height Hydraulic Cylinder, HVL10, 10t, 6mm stroke HVL10
Electronic/Electrical Parts and Controll Equipments

63-7419-81 Hi-Force Single, Portable Low Height Hydraulic Cylinder, HVL10, 10t, 6mm stroke HVL10

model: 63-7419-81
brand: Hi-Force

Product Description

Product Model: 63-7419-81Product Brand: Hi-Force Featur […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-7419-81
Product Brand: Hi-Force

Features

  • Safety Note - High pressure hydraulic equipment can work at extremely high pressures and careful attention should be paid to working pressures when choosing accessories. Very Low Height Cylinders. Very low height cylinders combine minimum closed height with maximum stroke to provide a short adjusting and lifting force in very confined work areas All cylinders have a 6mm stroke and are manufactured to the same high standards as our existing range of cylinders

Spec

  • Quantity:1piece
  • Manufacturer Series : HVL
  • Single/Double Acting : Single
  • Capacity : 10t
  • Stroke : 6mm
  • Closed Height : 28mm
  • Ext***ed Height : 34mm
  • Cylinder Effective Area : 14.4cm²
  • Oil Capacity : 9cm³
  • Outside Diameter : 87mm
  • Maximum Operating Pressure : 700 bar
  • Weight : 1.6kg
  • CODE No.:200-8775
