63-4756-06 Radiall Straight Standard 50Ω Cable Mount TNC Connector, Clamp Termination, RG141, RG142, RG223, RG400, RG58 R143008000W
Electronic/Electrical Parts and Controll Equipments

63-4756-06 Radiall Straight Standard 50Ω Cable Mount TNC Connector, Clamp Termination, RG141, RG142, RG223, RG400, RG58 R143008000W

model: 63-4756-06
brand: Radiall

Product Description

Product Model: 63-4756-06Product Brand: Radiall Feature […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-4756-06
Product Brand: Radiall

Features

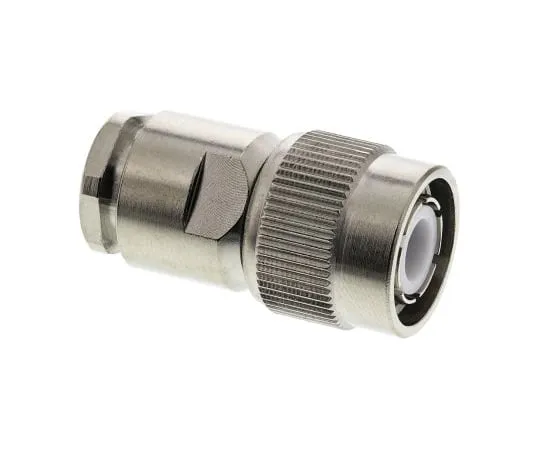

  • Radiall 50 Ohm TNC RF Coaxial Straight Cable Plug, Clamp Termination. 50 Ohm TNC RF coaxial straight cable plugs with a clamp style coaxial termination. These 50 Ohm TNC straight cable plugs have a PTE dielectric, nickel plated brass body and gold plated centre contact. The RF coaxial cable types that these 50 Ohm cable plugs can be ***d with are as follows: Stock number ; 295-8226 295-8226 : RG-58, RG-141, RG-142, RG-142 FX, RG-223, RG-400, KX 15, KX 23 Stock number ; 295-8232 295-8232 : RG-213, RG-214, RG-225, KX 4, KX 13 Stock number ; 295-8248 295-8248 : RG-59, RG-62, KX 6A

Spec

  • Quantity:1piece
  • G***er : Male
  • Body Orientation : Straight
  • Termination Method : Clamp
  • Mounting Type : Cable Mount
  • Size : Standard
  • Body Plating : Nickel
  • Cable Type : RG141, RG142, RG223, RG400, RG58
  • Impedance : 50Ω
  • Minimum Operating Temperature : -65 °C
  • Maximum Operating Temperature : +165 °C
  • Contact Plating : Gold over Nickel
  • Contact Material : Brass
  • CODE No.:295-8226
