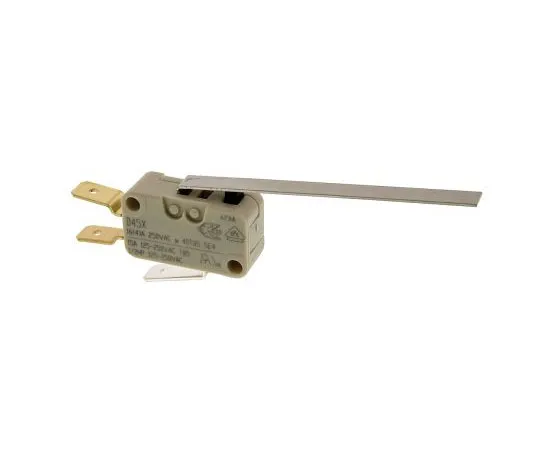

63-7381-73 SPDT-NO/NC Long Leaf Lever Microswitch, 16 A @ 250 V ac D459-V3LL
Electronic/Electrical Parts and Controll Equipments

63-7381-73 SPDT-NO/NC Long Leaf Lever Microswitch, 16 A @ 250 V ac D459-V3LL

model: 63-7381-73
brand: ZF

Product Description

Product Model: 63-7381-73Product Brand: ZF Features 16A […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-7381-73
Product Brand: ZF

Features

  • 16A: UL, CSA, VDE, SEV, SEMKO, KEMA, DEMKO, NEMKO, ÖVE, BEAB, SETI 16A Screw Terminal: UL, CSA, VDE 16A High Temperature: UL, CSA, VDE, SEV, SEMKO, KEMA, DEMKO, NEMKO, ÖVE, BEAB, SETI 21A: UL, CSA, VDE, SEV, SEMKO, KEMA, DEMKO, NEMKO, ÖVE, BEAB, SETI. Cherry D4 Series 0.1A, 16A ; 21A. Cherry D4 series miniature microswitches are a highly reliable switch that offers a high level of repeat accuracy. The D4 series has high contact stability thanks to application-specific contact materials for switching currents of 100 mA to 21 A at 250 V ac. Polyester casing Snap action V3 case size EN 61058 and UL1054-approved Cadmium-free contact material Mechanical life ≥ 2x10 ;sup>7 ;/sup> (3 x 10 ;sup>6 ;/sup> for high temperature versions)

Spec

  • Quantity:1bag(5pieces)
  • Actuator Type : Long Leaf Lever
  • Terminal Type : Tab
  • Contact Current Rating : 16 A @ 250 V ac
  • Contact Configuration : SPDT-NO/NC
  • Operating Force : 0.216 N
  • Minimum Operating Temperature : -40°C
  • Maximum Operating Temperature : +85°C
  • Contact Material : Silver Alloy
  • Operating Temperature Range : -40 → +85°C
  • CODE No.:159-4433
