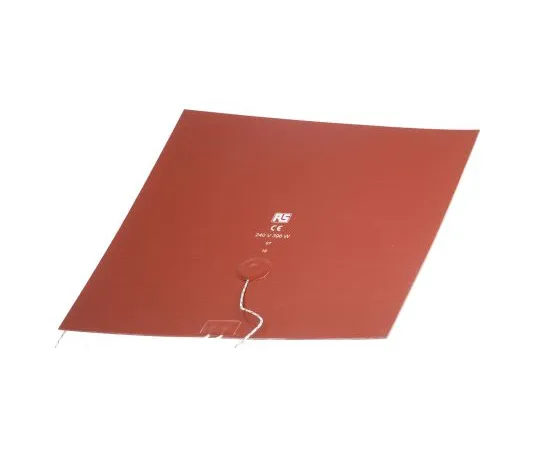

63-6757-11 RS PRO Silicone Heater Mat, 396 W, 300 x 300 (square)mm, 240 V ac 106-5429
Product Description
Product Model: 63-6757-11Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-6757-11
Product Brand: RS PRO
Features
- 3D Printer Heater Matte
- Silicone heater mat technology improves the quality and speed of 3D printing. It is thin and light, and the thermal mass is suppressed. Therefore, it can heat rapidly and react quickly to temperature control. The wide range of operating temperatures, flexibility, and superior electrical properties provide outstanding advantages over other forms of heating. In the Heated Build Platform (HBP) of 3D printers, accurate and uniform heating of the HBP improves the molding quality. As the extruded plastic cools, the HBP shrinks slightly. If this shrinkage is not uniform, a distorted part of the molding can occur.
- Features and benefits: Adhesive made by Nitto for flat bets in general 3D printers, no performance degradation Heating element is etched foil Operating temperature: +180 °C (intermittent maximum temperature due to adhesive), 150 °C for continuous operation is constant and uniform, all units come with instructions to eliminate quality concerns Built-in PTFE braided thermocouple Type J for universal control
Spec
- Mat Shape:Square
- Power Rating:396 W
- Rectangular Mat Size:300 x 300mm
- Peak Temperature:+180°C
- Supply Voltage:240 V ac
- Dimensions:300 x 300 (square) mm
- CODE No.:106-5429
