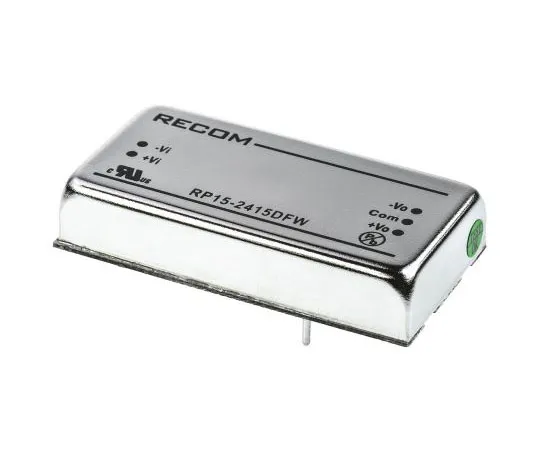

63-7349-93 Recom RP15 FW 15W Isolated DC-DC Converter Through Hole, Voltage in 9 → 36 V dc, Voltage out ±15V dc RP15-2415DFW
Product Description
Product Model: 63-7349-93Product Brand: Recom Features […]
Contact Us
Product Details
Product Model: 63-7349-93
Product Brand: Recom
Features
- UL 1950. UL recognised. Operating temperature with derating -40°C to +105°C. Recom 15W Single/Dual Output Regulated Isolated DC-DC Converter - RP15-FW Series. Ultra-wide 4:1 input voltage range Regulated outputs 1.6kV input / output isolation Pi input filter, requires external filter to meet EN 55022 Class A Under voltage, over voltage (single), over load and short circuit protection Shielded metal case with insulated baseplate Industry standard pin-out
Spec
- Quantity:1set(9pieces)
- Output Voltage : ±15V dc
- Input Voltage Range : 9 → 36 V dc
- Input Voltage Nominal : 24 V dc
- Isolation Voltage : 1.6kV dc
- Power Rating : 15W
- Output Current : ±500mA
- Mounting Type : Through Hole
- Number of Outputs : 2
- Minimum Temperature : -40°C
- Maximum Temperature : +75°C
- Series : RP15 FW
- CODE No.:166-9075
