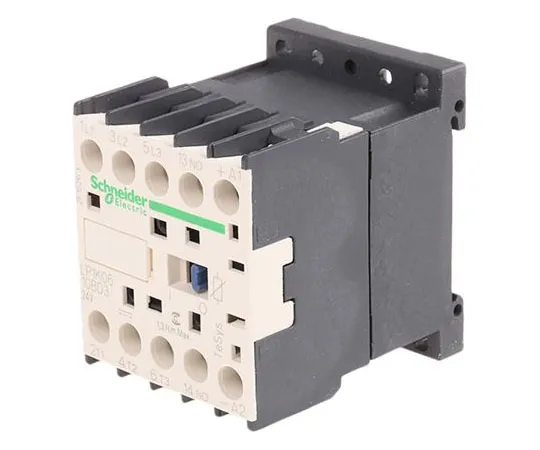

63-7632-44 Schneider Electric 3 Pole Contactor, 6 A, 24 V dc Coil, TeSys K, 3NO, 2.2 kW LP1K0610BD3
model:
63-7632-44
brand:
Schneider Electric
Product Description
Product Model: 63-7632-44Product Brand: Schneider Elect […]
Contact Us
Product Details
Product Model: 63-7632-44
Product Brand: Schneider Electric
Features
- BS5424 Part 1/IEC 947, VDE 0660, NFC63 110. CSA, UL, NEMKO, DEMKO, SEMKO, FIMKO. 3 Pole Contactors with Screw Clamp or Solder Termination. Contactors have a switching voltage of 440Vac and a coil consumption (ac coils 50 / 60Hz rated) of 4.5VA (Hold in) and 30VA (inrush). Utilisation category AC3 DIN rail or screw mounting Ambient air temperature range -25 to +50°C
Spec
- Quantity:1piece
- Coil Voltage : 24 V dc
- Number of Poles : 3
- Contact Current Rating : 6 A
- Power Rating : 2.2 kW
- Range : TeSys K
- Series : LP1K
- Normal State Configuration : 3NO
- Contact Voltage Rating : 690 V ac
- Number Of Auxiliary Contacts : 1
- Terminal Type : Screw
- Width : 45mm
- CODE No.:609-4174
