63-7040-33 Epcos Standard Series Metal Oxide Varistor 480pF 10A, Clamping 165V, Varistor 100V B72207S0600K101
Product Description
Product Model: 63-7040-33Product Brand: EPCOS Features […]
Contact Us
Product Details
Product Model: 63-7040-33
Product Brand: EPCOS
Features
- UL, CSA, VDE

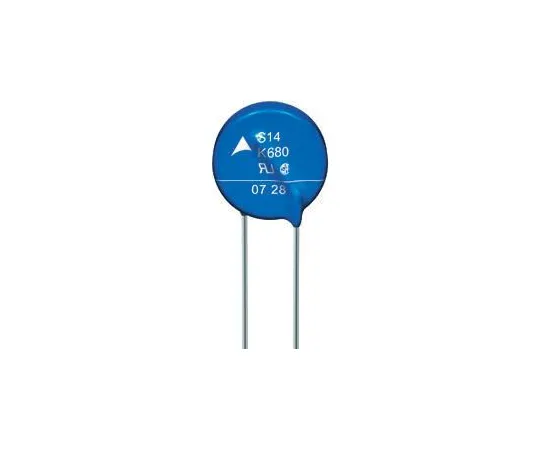

- Metal Oxide Varistor Standard Series
- Equipped with standard radial epoxy coated MOV and tin plated copper wire leads.
- Ceramic body coated with tin plated copper lead and epoxy resin Rated transient current (8// 20 μs) and rated energy (2 ms)
Spec
- Quantity:1bag(1000pieces)
- Varistor Voltage : 100V
- Maximum AC Voltage Rating : 60V
- Maximum DC Voltage Rating : 85V
- Clamping Voltage : 165V
- Clamping Current : 10A
- Energy : 4.8J
- Series : Standard
- Diameter : 9mm
- Maximum Surge Current : 1200A
- Capacitance : 480pF
- Thickness : 3.3mm
- Dimensions : 9 (Dia.) x 3.3mm
- Lead Pitch : 5mm
- CODE No.:134-5682
