Features

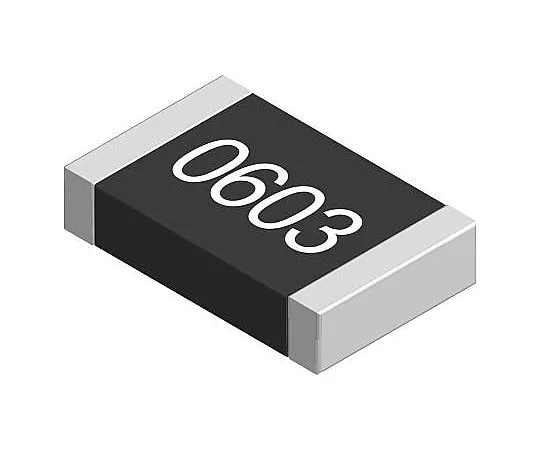

• TE Connectivity CRG0603 Series SMD Resistors. The CRG0603 range of SMD fixed resistors come from the TE Connectivity CRG series. They are all ho*** in a 0603 industry standard package size. The CRG0603 devices range from 1 ohm to 10M and tolerances of 1% and 5%. They also include zero ohm links. Type CRG0603 thick film resistors are powerful devices within a compact package. They are perfect for industrial applications and general purpose ***. Example applications include; high frequency operation, owing to the short lead structure and low capacitance. Construction: The CRG0603 are made from a ceramic base and feature screen-printed metal terminations. The resistive element is also screen printed and fired. Then the passivation layer is applied. A laser is ***d to trim the device to the correct size, within tolerance. The terminal has a matte Sn finish. What is the moisture sensitivity level? The CRG0603 are rated MSL Level 2. What is a 0603 package? 0603 represents the dimensions of the SMD package footprint. A 0603 package measures 1.6 x 0.8 mm (length x width) which is 0.06 x 0.03 inches.
