61-7663-75 Throttle Valve Elbow Type M5 x 0.8 JNC4-M5
Product Description
Product Model: 61-7663-75Product Brand: NIHON PISCO CO. […]
Contact Us
Product Details
Product Model: 61-7663-75
Product Brand: NIHON PISCO CO., LTD.
Features
- Controls the speed and air pressure signals of pneumatic equipment.
- Flow rate can be adjusted while air is flowing.
- After mounting, the tube removal angle can be changed by rotating the metal body and the resin body.
Spec
- Fluid ***d: Air
- Used pressure range: 0 - 0.9MPa
- Used vacuum pressure: -100kPa
- Operating temperature range: 0 - 60℃ (no freezing)
- RoHS supported
- Shape: Elbow type
- Applicable tube size (outer diameter): φ4mm
- Applied screw size (metric screw): M5 x 0.8
- Usage application: Specification: Standard, Appearance specification: Open ring (material); black (POM), Resin body color (material): Black (PBT), Metal body material (process): Yellow copper (electroless nickel plating)
Related product recommendations
You may also be interested in the following products
automaticdiluter
automaticdiluter

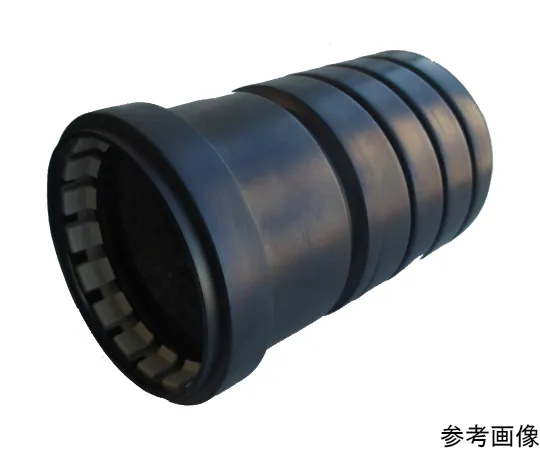

64-9688-63 ［Discontinued］SKLX Straight Pipe Joint S-Type Socket 30φ
