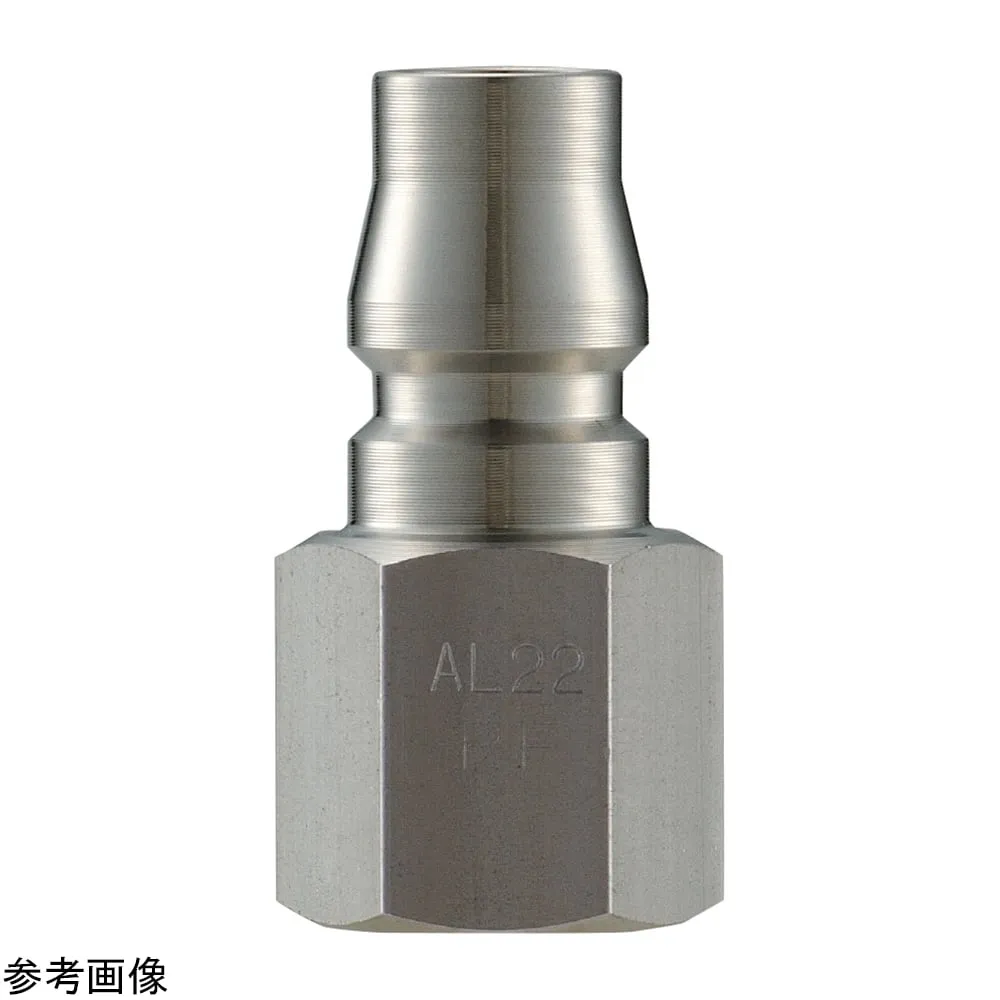

4-4786-01 Quick Coupling Female Screw Type Rc 1/4 CAL22PF3
model:
4-4786-01
category:
automaticdiluter
Product Description
Product Model: 4-4786-01 Features Single-valve specific […]
Contact Us
Product Details
Product Model: 4-4786-01
Features
- Single-valve specification for low pressure.
Spec
- Type: Female screw type
- Connection standard: Rc 1/4
- Material: SUS 304
- Seal Material: Nitrile Rubber
- Operating temperature range: -20 to + 80 degrees C
- Maximum working pressure: 1.5 MPa
- Fluid ***d: water and air
- Single-valve specifications
- *Be sure to flush from the socket side to the plug side.
