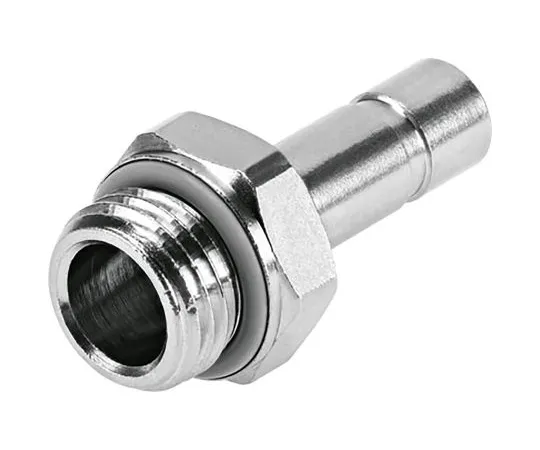

63-6995-55 Festo Pneumatic Straight Threaded-to-Tube Adapter, Yes Push In 8 mm NPQH-D-G14-S8-P10
Product Description
Product Model: 63-6995-55Product Brand: Festo Features […]
Contact Us
Product Details
Product Model: 63-6995-55
Product Brand: Festo
Features
- NPQH Push-In Fittings - Male Screw
- The Festo NPQH series push-in connectors are designed for easy tube connection and provide a reliable seal. The compact design is ideal for pneumatic applications with temperatures up to 150 °C and pressures up to 20 bar. The NPQH series is an all-metal push-in joint made of brass chemically plated with nickel and is safe for *** in the food industry. Features high corrosion resistance (CRC3) and chemical resistance.
- Features and Advantages: Quick and easy tube insertion
- Made of metal
- High heat resistance
- Detergent resistance
- FDA compliant
- High rated pressure
Spec
- Quantity:1bag(10pieces)
- Connection Style : Threaded-to-Tube
- Connector A : G 1/4
- Connector B : Push In 8 mm
- Connector A - G***er : Male
- Manufacturer Series : NPQH
- Mounting Type : Inline
- Body Material : Brass
- Maximum Operating Pressure : 20 bar
- Maximum Operating Temperature : +150°C
- Minimum Operating Temperature : 0°C
- Chemical Resistant : Yes
- Food Grade : Yes
- CODE No.:125-9620
