Features

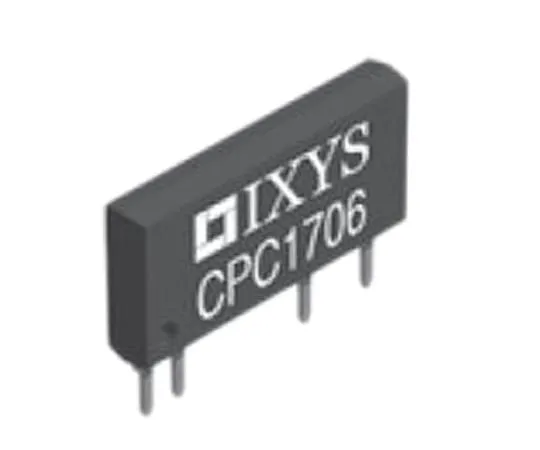

• UL 508 Certified Component: File E69938 CSA Certified Component: Certificate 1172007. 1-Form-A OptoMOS DC Power SIP Relay, CPC. This single pole miniature solid state relays has a normally open (1-Form-A) contact. It is manufactured in a 4-pin power SIP package. They have an input output isolation barrier rated to 2500 Vrms. The outputs have been constructed from efficient MOSFET switches and the well-known OptoMos architecture. The input is an efficient GaAlAS infrared LED which controls the optically coupled output. With a low on-resistance and a high load current rating these units are suitable for a wide variety of applications, including those requiring high performance switching. Potential Applications: Industrial controls Motor control Robotics Medical equipment, patient/equipment isolation Instrumentation Multiplexers Data acquisition Electronic switching I/O subsystems Meters (watt-hour, water, gas) IC equipment Home appliances. Features Handle load currents up to 4A dc 2500 Vrms input/output isolation Power SIP package High reliability No moving parts Low drive power requirements (TTL/CMOS compatible) Arc-free with no snubbing circuits No EMI/RFI generation Machine insert-able, wave solderable
