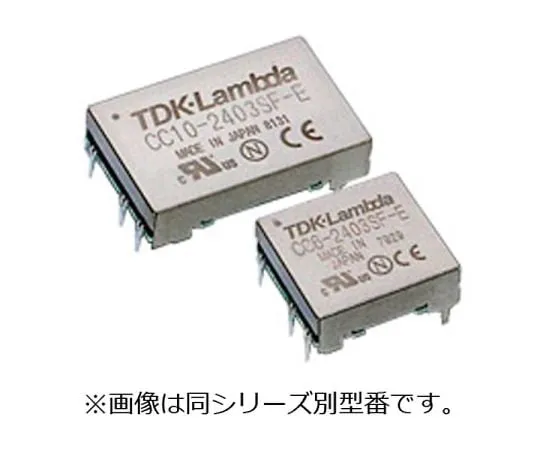

64-5663-76 DC-DC Converter CC-E Series 1.5 W CC1R5-4803SR-E
Product Description
Product Model: 64-5663-76Product Brand: TDK-Lambda Corp […]
Contact Us
Product Details
Product Model: 64-5663-76
Product Brand: TDK-Lambda Corporation
Spec
- Output Power: 1.32 W
- Input voltage range: 48 V
- Output Voltage: 3.3 VDC
- Output Current: 0.4 A
- Efficiency (typ): 0.7
- Operating temperature range:? 40 to + 85 degrees C
- Dimensions: 16.51 x 8.8 x 16.6 (mm)
- The mounting area is reduced by about half compared to conventional products.
- Tantalum capacitors and aluminum electrolytic capacitorless
- The output voltage is accurate to within +/- 3% (under 10 W single output).
- 5-sided metal shielded low noise design
- Lightweight design without resin filling
- Horizontal SMD Type
- RoHS compliant
