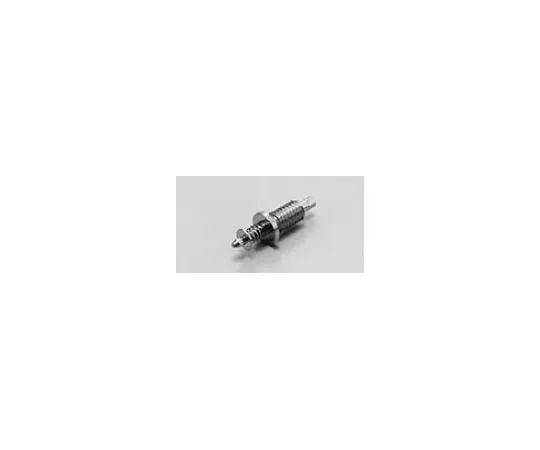

64-6183-43 Battery spring Probe VB 24 series (10 pieces) VB-24-8-CB
Product Description
Product Model: 64-6183-43Product Brand: MAC EIGHT CO., […]
Contact Us
Product Details
Product Model: 64-6183-43
Product Brand: MAC EIGHT CO., LTD
Spec
- Content: With nuts
- Material: Body/Contact: Brass, Spring/E-Ring: Stainless steel
- Treatment: Body contact: Nickel base gold-plated
- Current rating: 5A
- Contact resistance: 10 m.OMEGA. or less
- Endurance: 10,000 times or more
- Mountable plate thickness: 10. to 3.0 mm
- Mounting hole diameter: 4.2 phi
- Working power: 200 g with 1 mm stroke
- Stroke: 1.5 mm
- Operating temperature range: -20 degrees C to + 100 degrees C
- Entries: 10
- Use for charging and discharging batteries, etc. Can be fixed with inrush current compatible nut.
- RoHS compliant
- Quantity: 1 bag (10 bottles)
