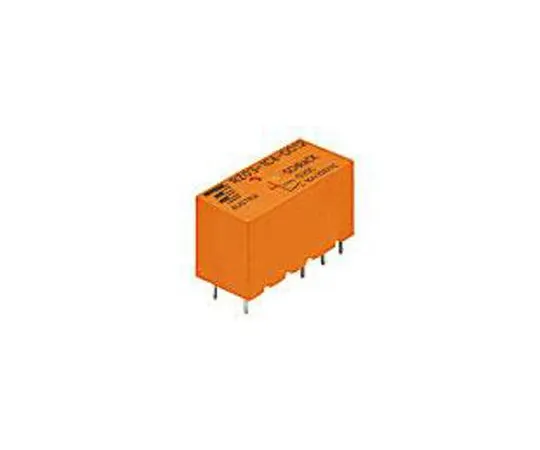

63-6944-12 Relay 48 V dc 1 c Contact 16 A Substrate Mounted RZ 2-1415899-4
model:
63-6944-12
brand:
TE Connectivity
Product Description
Product Model: 63-6944-12Product Brand: TE Connectivity […]
Contact Us
Product Details
Product Model: 63-6944-12
Product Brand: TE Connectivity
Features
- VDE and UL
- TE Connectivity RZ Series PCB Power Relay
- RZ Series PCB Mounted Power Relay Power Relay with 400 mW DC coil and 5 kV/10 mm reinforced insulation. These RZ Series PCB-mounted power relays are fluxtight and have silver-nickel alloy contacts. 12 A version of the RZ series PCB-mounted power relay is 3.5 mm pinned 16 A version of the RZ series PCB-mounted power relay is 5 mm pinned
- 3.2 or 5 mm pinned Dimensions: 29.00 x 12.70 x 15.70 mm Complies with IEC60335-1 requirements for the appliance industry
Spec
- Quantity: 1 bag (5 pieces)
- Coil voltage: 48 V dc
- Contact configuration: SPDT
- Switching current: 16 A
- Series: RZ
- Maximum switching voltage AC: 400 V
- Application Type: Boiler Control, Garage Door Control, Home Appliances, POS Automation, Timer
- Length: 29 mm
- Depth: 12.7 mm
- Height: 15.7 mm
- Dimensions: 29 x 12.7 x 15.7 mm
- Operating temperature Min: -40 degrees C
- RoHS compliance status: Compliance
- Securities Code: 124 -4491
