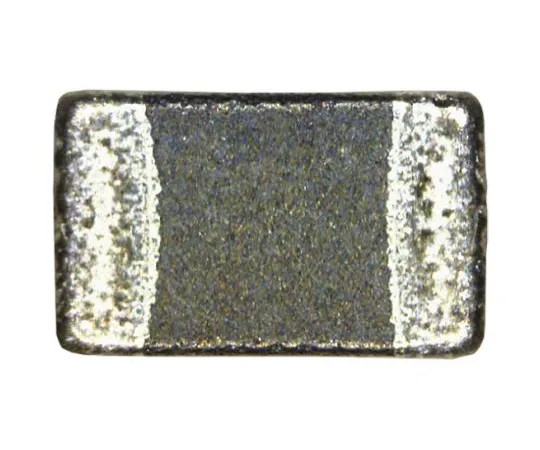

63-6979-63 Murata Ferrite Bead (Chip Bead), 2 x 1.25 x 0.85mm (0805 (2012M)), 600Ω impedance at 100 MHz BLM21AG601SN1D
Product Description
Product Model: 63-6979-63Product Brand: Murata Features […]
Contact Us
Product Details
Product Model: 63-6979-63
Product Brand: Murata
Features
- SMD0805 Ferrite Filter - BLM21A Series
- Murata's BLM series ferrite beads do not require a ground connection, making them ideal for *** in circuits with unstable ground lines. The ferrite beads act like resistors at noise frequencies, preventing distortion of the signal waveform while reducing the likelihood of resonance. The external electrode with a nickel barrier structure provides excellent solder heat resistance. This series of ferrite beads is designed for general ***.
Spec
- Quantity:1set(4000pieces)
- Package Type : 0805 (2012M)
- Impedance at 100 MHz : 600Ω
- Current Rating : 700mA
- Type : Chip Bead
- Dimensions : 2 x 1.25 x 0.85mm
- Length : 2mm
- Depth : 1.25mm
- Height : 0.85mm
- Maximum DC Resistance : 200mΩ
- CODE No.:125-3153
