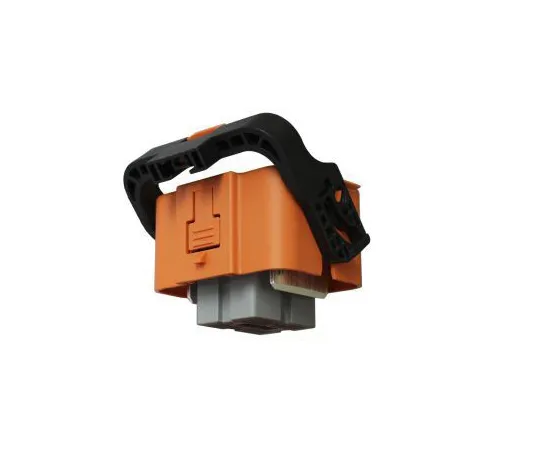

63-6896-40 mini-MSD Connector (for Electric Vehicless) 125 A 600 to 690 V ac male Orange MINIMSDM125
Product Description
Product Model: 63-6896-40Product Brand: Amphenol Featur […]
Contact Us
Product Details
Product Model: 63-6896-40
Product Brand: Amphenol
Features
- Mini MSD Plug (with HVIL)
- This Mini MSD (Manual Service Disconnect) from Amphenol is for charging plug-in hybrid vehicles (PHEV) and is equipped with a high voltage interlocking loop (HVIL). This plug has a two-step lever to open the HVIL circuit before separating the high-voltage contacts. The MSD allows the internal high-voltage battery pack to be shut off without the need for special tools, while also protecting the battery from short circuits. This mini MSD provides advanced intrusion protection and provides a safe and secure solution for PHEV services. It is also a more compact and cost-effective alternative to the standard MSD.
- Features and Advantages: Durability over 50 insertions and removals Protection rating for biting: IP67, IP6K9K Operating temperature: -40°C → 70°C Standards: USCAR-2, USCAER-37, LV-215
Spec
- Number of pieces: 1
- Series: MINI MSD
- Connector Type: Mini Manual Service Disconnect
- Current rating: 125 A
- Operating voltage: 600 to 690 V ac
- Connector G***er: Male
- Contact G***er: Male
- Latch type: 2-level lever
- RoHS compliance status: Compliance
- Securities Code: 123 -5206
