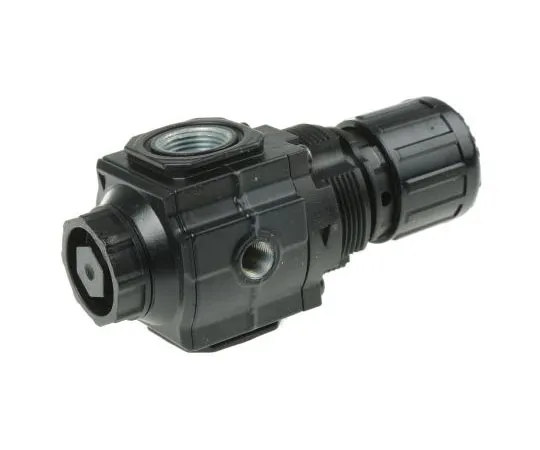

63-7460-32 Norgren Pneumatic Regulator G 3/8 33L/s, 0.3 → 10bar R72G-3GK-RMN
Product Description
Product Model: 63-7460-32Product Brand: Norgren Feature […]
Contact Us
Product Details
Product Model: 63-7460-32
Product Brand: Norgren
Features
- Typical flow data is accurate with 10 bar inlet pressure, 6.3 bar set pressure and a 1 bar drop. Pneumatic Regulator. Allows reduction of downstream pressure when the system is dead-***ed Temperature range -34°C to +65°C/80°C (72/74) Zinc body, brass valve, acetal bonnet and bottom plug Up to 105 dm 3 /s
Spec
- Quantity:1piece
- Port Connection : G 3/8
- Minimum Outlet Pressure : 0.3bar
- Maximum Outlet Pressure : 10bar
- Maximum Input Pressure : 20bar
- Manufacturer Series : R72G
- Pressure Gauge Port Size : Rc 1/8
- Port Connection Thread Size : 3/8 in
- Pressure Gauge Port Thread Size : 1/8 in
- Maximum Flow Rate : 33L/s
- Integral Check Valve : Without Check Valve
- Port Connection Thread Standard : G
- Minimum Operating Temperature : -34°C
- Maximum Operating Temperature : +65°C
- Pressure Gauge Port Thread Standard : Rc
- CODE No.:267-9349
