63-6855-08 Insulation DC-DC Converter Vout: ± 15 V dc 9 to 18 V dc 20 W 12 V dc JCM2012D15
Product Description
Product Model: 63-6855-08Product Brand: XP Power Featur […]
Contact Us
Product Details
Product Model: 63-6855-08
Product Brand: XP Power
Features

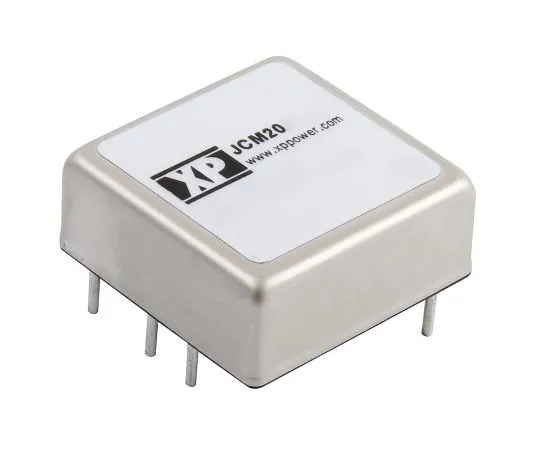

- XP Power-JCM20 Series Insulated DC-DC Converter
- XP Power's JCM20 series is an excellent single and dual output 20 W insulated DC-DC converter. Packaged in industry-standard packaging, it features 1600 V dc breakdown voltage and high efficiency of up to 89%. It is compact, has a 2:1 input voltage range, and features extremely high power density.
- 20 W Insulated DC-DC Converter 1600 V dc Insulation Single and Dual Output 2:1 Input Range Operating Temperature Range: -40 → +105 °C High Efficiency Up to 89% Very High Power Density Substrate Mounting
Spec
- Quantity: 1 piece
- Output Voltage: ± 15 V dc
- Input voltage range: 9 to 18 V dc
- Input voltage nominal: 12 V dc
- insulation Voltage: 1.6 kV dc
- Rating Power: 20 W
- Output current: ± 667 mA
- Mounting type: through hole
- Number of outputs: 2
- Efficiency: 89%
- Road regulation: ± 1%
- Maximum temperature: + 105 degrees C
- Series: JCM
- RoHS compliance status: Compliance
- Securities Code: 122 -7472
