Electronic/Electrical Parts and Controll Equipments

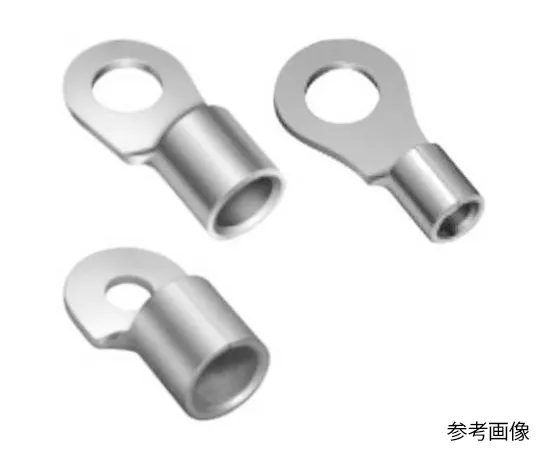

63-4885-41 JST Uninsulated Crimp Ring Terminal, 4mm Stud Size, 6.6mm² to 10.5mm² Wire Size 43681
Product Description
Product Model: 63-4885-41Product Brand: JST Features UL […]
Contact Us
Product Details
Product Model: 63-4885-41
Product Brand: JST
Features
- UL Listed E42024 CSA Certified LR20812. JST part numbers Rxxx conform to JIS C2805. Uninsulated Crimp Ring Terminals, JST. A range of uninsulated crimp ring terminals from JST to suit stud sizes from 3 to 12mm and wire sizes from 0.2 to 10.5mm² (26 to 8 AWG). The terminals have butted seams and are made from tin-plated oxygen-free copper.
Spec
- Quantity：1bag(100pieces)
- Insulation : Uninsulated
- Minimum Wire Size mm² : 6.6mm²
- Minimum Wire Size AWG : 8AWG
- Stud Size : 4mm
- Overall Length : 23.8mm
- CODE No.:604-8272
