63-6850-31 Insulation DC-DC Converter Vout: ± 15 V dc 9 to 36 V dc 2 W 24 V dc IM2415S
Product Description
Product Model: 63-6850-31Product Brand: XP Power Featur […]
Contact Us
Product Details
Product Model: 63-6850-31
Product Brand: XP Power
Features

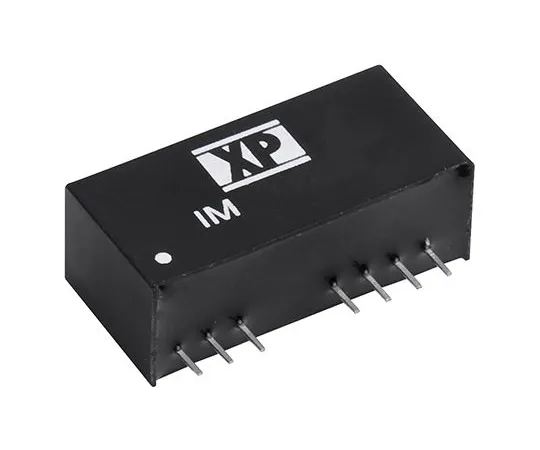

- XP Power-IM Series Insulated DC-DC Converter
- The IM series of XP Power is a reliable and stable single/dual output 2W insulated DC-DC converter. Offers a wide 4:1 input range, 1500 V dc breakdown voltage, and comes in an industry-standard SIP package. These compact DC-DC converters also feature high efficiency of up to 85%, remote on/off settings, and continuous short-circuit protection.
- 2 W Insulated DC-DC Converter 1500 V dc Insulation Voltage Stable Single/Dual Output Operating Temperature Range: -40 → +85 °C Industry Standard SIP Packaging Up to 85% Efficiency Remote On/Off Setting Continuous Short Circuit Protection
Spec
- Quantity: 1 piece
- Output Voltage: ± 15 V dc
- Input voltage range: 9 to 36 V dc
- Input voltage nominal: 24 V dc
- insulation Voltage: 1.5 kV dc
- Rating Power: 2W
- Output current: ± 65 mA
- Mounting type: through hole
- Number of outputs: 2
- Efficiency: 82%
- Packages: SIP
- Road regulation: ± 0.5%
- Maximum temperature: + 100 degrees C
- Series: IM
- RoHS compliance status: Compliance
- Securities Code: 122 -6979
