63-7501-31 Euro-Locks a Lowe & Fletcher group ******* Panel to Tongue Depth 20mm Nickel, Stainless Steel Chrome Plated Camlock, 2724032
model:
63-7501-31
brand:
Euro-Locks a Lowe & Fletcher group Company
Product Description
Product Model: 63-7501-31Product Brand: Euro-Locks a Lo […]
Contact Us
Product Details
Product Model: 63-7501-31
Product Brand: Euro-Locks a Lowe & Fletcher group Company
Features

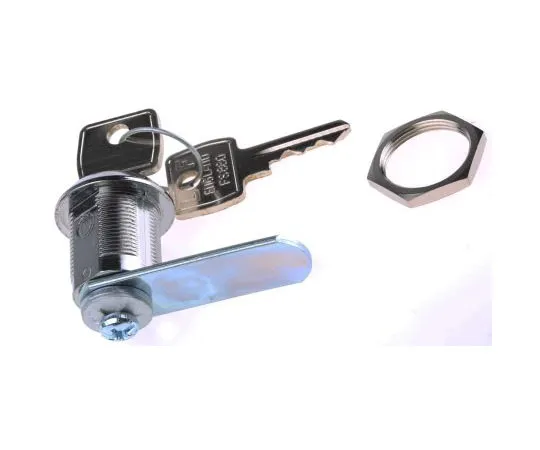

- Lowe ; Fletcher FS880 Camlock. Camlocks consist of a base unit (the housing and barrel) with a cam attached, operating the lock moves the cam to open and close the lock. These locks are extremely versatile and can be ***d on a multitude of different applications. Panel to tongue depth is 20mm. Chrome plated finish. Features and Benefits. 2 keyed FS880 camlock One key fits all 5 disc 20mm housing dimension Max panel thickness 10mm Panel to tongue 20mm. Used on:. Metal Furniture Wooden Furniture Postal Boxes Automotive accessories Asset Management Systems
Spec
- Quantity:1piece
- Lock Type : Cam
- Unlock Method : Key
- Panel To Tongue Depth : 20mm
- Panel Cut Out : 19.1 x 16.6mm
- Maximum Panel Thickness : 10 mm, -
- Panel Cut Out Length : 19.1mm
- Panel Cut Out Width : 16.6mm
- Material : Nickel, Stainless Steel
- Finish : Chrome Plated
- CODE No.:347-8658
