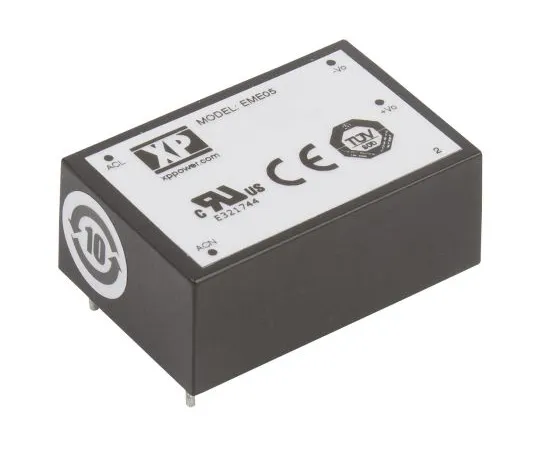

63-6847-84 AC/DC Converter 9 V dc 722 mA 5 W sealed Y EME05US09
Electronic/Electrical Parts and Controll Equipments

63-6847-84 AC/DC Converter 9 V dc 722 mA 5 W sealed Y EME05US09

model: 63-6847-84
brand: XP Power

Product Description

Product Model: 63-6847-84Product Brand: XP Power Featur […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-6847-84
Product Brand: XP Power

Features

  • XP Power-EME05 Series AC-DC Power Supply
  • XP Power's EME05 series is a highly reliable, open-frame and sealed AC-DC single-output power supply. It is designed primarily for medical applications and complies with worldwide medical safety standards according to Class B conductive and radioactive noise. This compact Class II design offers a single output range of 3.3~48 V for peak loads of 130% and 30 seconds.
  • Features and benefits: 2 structural options: 5 W 3.3 → 48 V single output open frame and sealed substrate mounting 130% meets global medical safety standards; Class II design for 30 second peak load

Spec

  • Quantity: 1 piece
  • Output Voltage: 9V dc
  • Output current: 722 mA
  • Rating Power: 5W
  • Number of outputs: 1
  • Input Voltage: 85 to 264 V ac
  • Mounting Type: PCB Mount
  • Package Type: Sealed
  • Length: 38.1 mm
  • Width: 25.4 mm
  • Depth: 15.2 mm
  • Weight: 24 g
  • Maximum temperature: + 70 degrees C
  • Medical standards certification: Yes
  • RoHS compliance status: Compliance
  • Securities Code: 122 -6576
