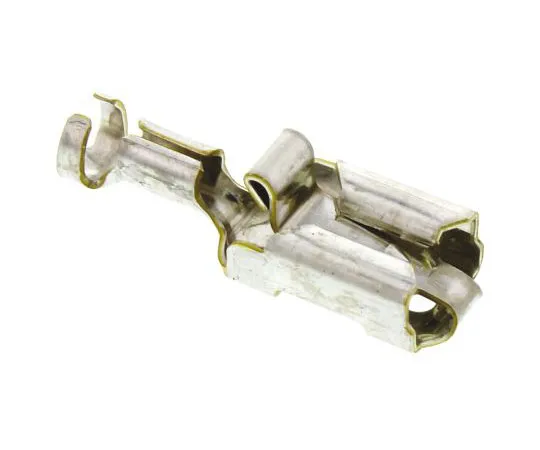

63-7519-17 TE Connectivity Positive Lock .250 Mk I Series Crimp Receptacle, 6.35 x 0.81mm, 0.8mm² to 2mm², 18AWG to 14AWG, Tin 341002-6
model:
63-7519-17
brand:
TE Connectivity
Product Description
Product Model: 63-7519-17Product Brand: TE Connectivity […]
Contact Us
Product Details
Product Model: 63-7519-17
Product Brand: TE Connectivity
Features
- TE Connectivity Positive Lock Connector Contacts - MK I 250 Series. MK I 250 Series positive lock receptacle and flag style crimp terminals with reduced insertion force and snap action locking which accept a wire size range of 20 to 10 AWG. These Positive Lock crimp receptacles lock onto the mating tab terminals containing holes or dimples and make a mechanical 'snap' when correctly positioned and can only be removed when an integral depressor on the receptacle terminal is deflected.
Spec
- Quantity:1bag(100pieces)
- Series : Positive Lock .250 Mk I
- Insulation : Uninsulated
- Minimum Wire Size mm² : 0.8mm²
- Maximum Wire Size mm² : 2mm²
- Minimum Wire Size AWG : 18AWG
- Maximum Wire Size AWG : 14AWG
- Tab Size : 6.35 x 0.81mm
- Length : 22.25mm
- Contact Plating : Tin
- Contact Material : Brass
- CODE No.:388-3202
