63-6790-86 RS PRO, SC, PC Multimode Simplex Fibre Optic Connector, OM1 62.5/125μm Fibre Size, 0.5dB Insertion Loss 121-4210
Product Description
Product Model: 63-6790-86Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-6790-86
Product Brand: RS PRO
Features

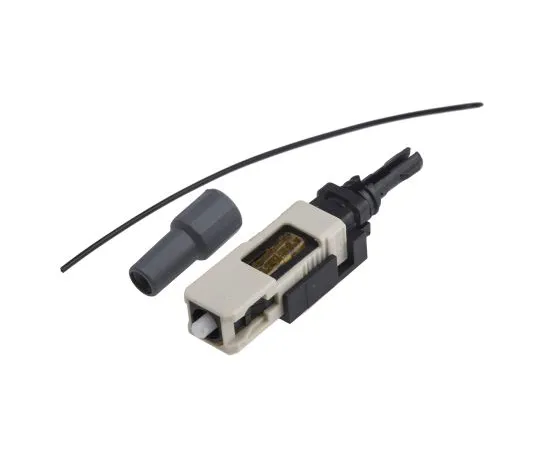

- RS Pro SC Multi-mode Field Installable Connector
- SC Field Installable Connector (FIC) series delivered by the trusted RS Pro brand. This fiber optic connector is factory terminated and polished for fast and reliable connections. This excellent quality fiber connector eliminates the need for epoxy, polishing, and crimping, making it ideal for on-time applications. This multi-mode simplex connector series has fiber sizes of 62.5/125 and 50/125 and is available in both APC and PC polishing types. It also provides a window for testing with a visual fault locator.
- Features & Benefits: Ready-to-*** polished connectors with mechanical spliceStandard SC adapterEasy termination processesTime-saving, reliable optical performanceUse: Fibre To The Home (FTTH) Optical network repair
Spec
- Series:SC
- Connector Type:SC
- Connector Polish:PC
- Single/Multimode:Multimode
- Simplex/Duplex:Simplex
- Fibre Size:62.5/125µm
- Insertion Loss:0.5dB
- Buffer Diameter:900µm
- Optical Fibre Type:OM1
- Colour:Beige
- CODE No.:121-4210
