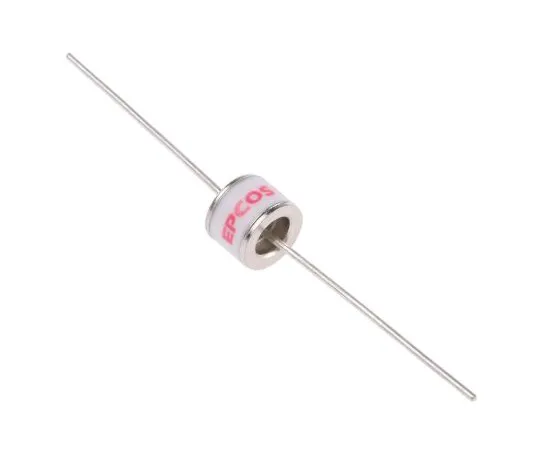

63-4800-43 EPCOS EHV Series 150V 10kA Through Hole 2 Electrode Arrester Gas Discharge Tube (GDT) B88069X0880S102
Product Description
Product Model: 63-4800-43Product Brand: EPCOS Features […]
Contact Us
Product Details
Product Model: 63-4800-43
Product Brand: EPCOS
Features
- Miniature Gas Filled, 5kA/5A. Over-voltage arresters for the protection of telecommunication systems and equipment with measuring, control and regulating lines Robust ceramic body Low impulse spark-over voltage
Spec
- Quantity：1piece
- Series : EHV
- Suppressor Type : 2 Electrode Arrester
- Maximum Surge Current : 10kA
- DC Spark Over Voltage : 150V
- Impulse Spark Over Voltage : <450 V @ 100 V/μs, <550 V @ 1 kV/μs
- Maximum Voltage Rating : 150 V dc
- Mounting Type : Through Hole
- Length : 6.05mm
- Maximum Operating Temperature : +90°C
- Minimum Operating Temperature : -40°C
- CODE No.:461-2382
