Analyzer, Testing Equipment
67-4715-67 HDMI 4K Digital Microscope (Biological Microscope) 40~1500 x BA81-15T-4000BMH
Product Description
Product Model: 67-4715-67Product Brand: SHIMADZU RIKA C […]
Contact Us
Product Details

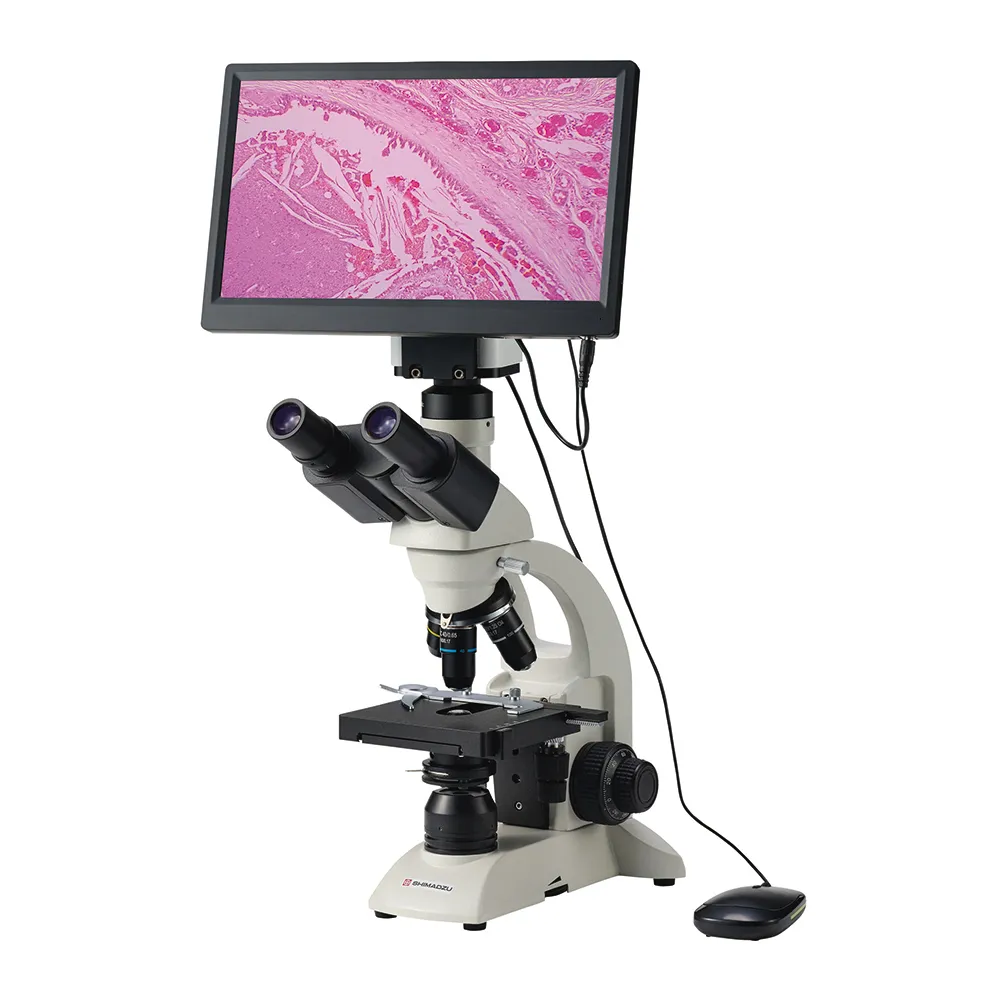

Product Model: 67-4715-67
Product Brand: SHIMADZU RIKA CORPORATION
Features
- The microscope has a large 11.6 inch monitor with three eyes. The screen is easier to see.
- Simultaneous HDMI/USB output is possible! You can output to the monitor and PC simultaneously.
- Can store still images (JPEG) and movies (MP4) on the spot using SD card/USB memory.
- HDMI 4K (30 frames per second) high-speed display. Image movement is smooth when moving.
- Acromart Super Contrast objective lens is ***d. You can observe with clear images.
- Measurements can be taken on the HDMI screen.
Spec
- Overall magnification: 40~1500 x
- Eyepiece: WF10 x/18 mm, WF15 x/13 mm (2 Each) with Eyepiece Micrometer Frame
- Objective Lens: Acromart Super Contrast Objective Lens 4 x 10 x S40 x S100 x
- Lens Type: Siedentop-type three-eye 30° inclined lens 360° rotation type
- Focusing device: with uniaxial coarse fine moving handle sample safety device
- stages: integrated XY stage
- Lighting Devices: LEDs (Rechargeable, Continuous Dimmer)
- Size: (including monitor) Approx. W280 x D333 x H540mm
- Weight: Approximately 6.0 kg (including monitor)
- Power: 100-240 VAC 50/60Hz (AC Adapter)
- Video output: USB2.0/3.0 HDMI USB memory SD * USB memory and SD card are sold separately.
- Image Sensor: 1/1.8 "CMOS
- number of effective pixels
- USB: 3840×2160 (approx. 8.3 million pixels)
- HDMI: 3840×2160 (approx. 8.3 million pixels)
- SD: 3840×2160 (Approximately 8.3 million pixels)
- Monitor: 11.6 inch HDMI monitor
- Compatible Software: Motic Images Plus
- Supported operating systems: Windows10
- Accessories: Cap for eyepiece, three-eye cap, dust cover (For Microscope Body. * If you want to cover with the monitor mounted, please purchase the optional "For Microscope with Dust Cover Monitor".) , Hex Wrench (0.9/2.0/2.5 mm, 3 Types), AC Adapter (1 for Microscope and 1 for Digital Camera), Spare LED, Software (Motic, Images, Plus), Dust Cap, Calibration Slide, USB Cable, HDMI Cable, C Mount Ring, C Mount Adapter (0.65 x), USB Mo***
