Features

• Use this mode to bounce (or drop) a beam vertically using a kinematic mirror holder (MHG) on an optical bench.

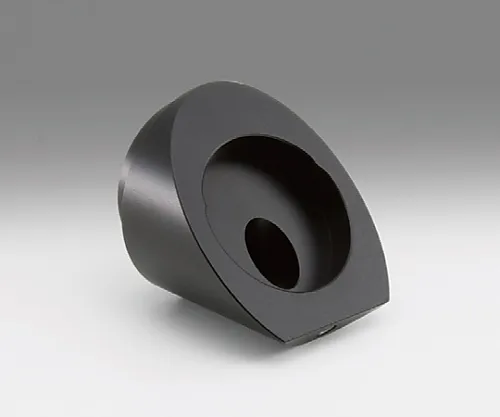

• A kinematic mirror holder with a tilted mirror adapter has a mirror reflection surface tilted 45 degrees, so the mirror surface motion does not match the adjustment range or resolution of the mirror holder specification.
• The mirror side is fixed in three places.
• The adapter fits into the mirror frame of the mirror holder so that it can be rotated on the cylindrical center axis of the adapter to change the orientation of the inclined plane of the mirror.
