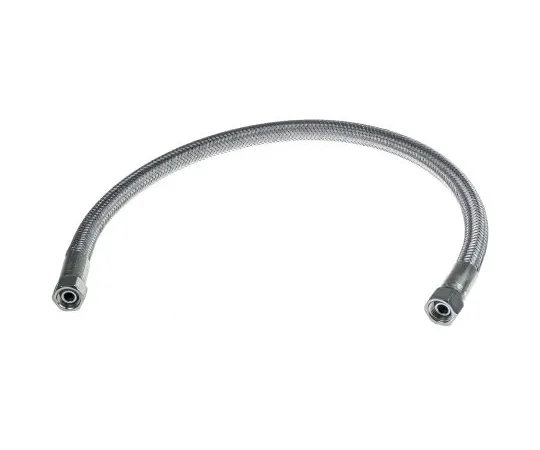

63-6763-27 750mm Galvanized Steel Wire Hydraulic Hose Assembly, 140bar Max Pressure 110-2253
Product Description
Product Model: 63-6763-27Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-6763-27
Product Brand: RS PRO
Features
- Wire Coating Hydraulic Hose
- Hydraulic hose with galvanized steel wire coating and reinforcement by high tensile steel wire. Each assembly includes an integrated *** fixture (to prevent misalignment of inserts and sleeves) and a matching hose.
- Applications: Applications include petroleum-based hydraulic fluids, mineral oils, lubricants, water-glycol, water-oil emulsion hydraulic fluids, hot oil, grease, crude oil, fuel oil, air, and medium pressure water.
Spec
- Overall Length:750mm
- Inside Diameter:1/2in
- Connector A:Straight G 1/2 Female
- Connector B:Straight G 1/2 Female
- Inner Hose Material:Synthetic Rubber
- Reinforcing Material:Steel
- Cover Material:Galvanized Steel Wire
- Maximum Operating Pressure:140bar
- Connector B - Thread Standard:G
- Connector A - Angle:Straight
- Connector B - Thread Size:1/2in
- Connector A - Thread Standard:G
- Connector B - G***er:Female
- Minimum Operating Temperature:-40°C
- CODE No.:110-2253
