Electronic/Electrical Parts and Controll Equipments

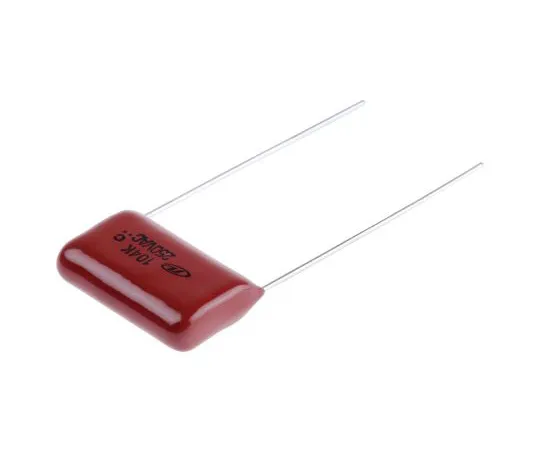

63-5064-63 Nichicon 100nF Polyester Capacitor PET 250V ac ±10% XL Series Radial QXL2E104KTPT
Product Description
Product Model: 63-5064-63Product Brand: NICHICON Featur […]
Contact Us
Product Details
Product Model: 63-5064-63
Product Brand: NICHICON
Features
- XL Series Metallized Polyester Film Capacitor. These Nichicon brand XL series capacitors feature a metallized polyester film dielectric and is well suited to high frequency applications. They are highly reliable and feature a self-healing, non-inductive construction with a double insulated epoxy resin that is both flame-retardant and resistant against humidity.
Spec
- Quantity：1bag(5pieces)
- Capacitance : 100nF
- Voltage : 250V ac
- Mounting Type : Radial
- Lead Pitch : 15mm
- Series : XL
- Tolerance : ±10%
- Dielectric : Metallized Polyester Film
- Length : 18.5mm
- Depth : 6.4mm
- Height : 13.7mm
- Dimensions : 18.5 x 6.4 x 13.7mm
- Minimum Operating Temperature : -40°C
- Maximum Operating Temperature : +105°C
- Terminal Type : Radial
- CODE No.:755-4260
