63-6763-12 854mm Synthetic Rubber Hydraulic Hose Assembly, 215bar Max Pressure 110-2238
Product Description
Product Model: 63-6763-12Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-6763-12
Product Brand: RS PRO
Features
- Flexible hose assembly allows liquid transport at high pressure. Pay special attention to the application, material, and product specifications.
- These assemblies are not suitable for *** with our company high-pressure hydraulic cylinders and pump series with an operating pressure of 700 bar. These assemblies are not eligible for our company's BS 5750 Part 2 stocklist for Assessment Capacity Level B registration. Anti-puncture cover for air or gas applications exceeding 17 bar (250 psi).

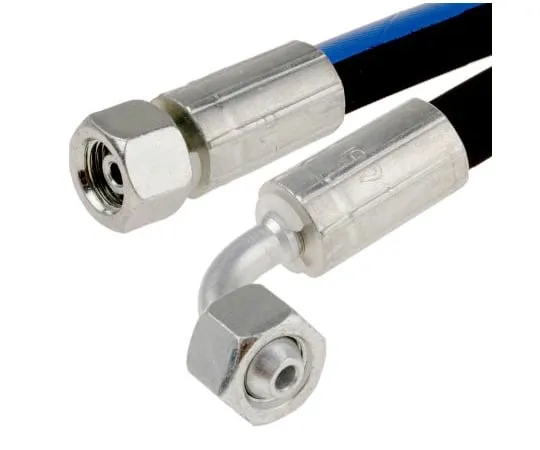

- Straight -90 ° Elbow Hose Assembly
- High-quality flexible hydraulic hose with crimping *** attachment. Each assembly includes an integrated *** fixture (to prevent misalignment of inserts and sleeves) and a matching hose. This hose is a synthetic rubber tube with a synthetic rubber outer cover and high tensile steel wire reinforcement. The fittings are made of galvanized mild steel.
- Applications: Applications include petroleum-based hydraulic fluids, mineral oils, lubricants, water-glycol, water-oil emulsion hydraulic fluids, hot oil, grease, crude oil, fuel oil, air, and medium pressure water.
Spec
- Overall Length:854mm
- Inside Diameter:3/4in
- Connector A:Straight G 3/4 Female
- Connector B:G 3/4 Female
- Inner Hose Material:Synthetic Rubber
- Reinforcing Material:Steel
- Cover Material:Synthetic Rubber
- Maximum Operating Pressure:215bar
- Connector B - Thread Standard:G
- Connector A - Angle:Straight
- Connector B - Thread Size:3/4in
- Connector A - Thread Standard:G
- Connector B - G***er:Female
- Connector A - G***er:Female
- CODE No.:110-2238
