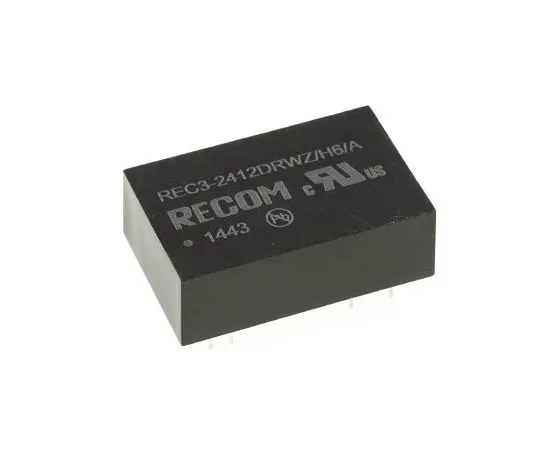

63-7587-31 Recom REC3 3W Isolated DC-DC Converter Through Hole, Voltage in 9 → 36 V dc, Voltage out ±12V dc REC3-2412DRWZ/H6/A
Product Description
Product Model: 63-7587-31Product Brand: Recom Features […]
Contact Us
Product Details
Product Model: 63-7587-31
Product Brand: Recom
Features
- EN60950-1, UL60950-1, EN60601-1. Operating temperature is without derating. Recom 3W DIP Single/Dual Output Regulated Isolated DC-DC Converter - REC3 Series. 2kVDC (H2 suffix) 4kVdc (H4 suffix) or 6kVdc (H6 suffix) Isolation Regulated outputs 2:1 or 4:1 (Z suffix) wide range input Efficiency up to 85% UL94V-0 package material Short circuit protection, auto restarting DIP24 miniature package
Spec
- Quantity:1set(15pieces)
- Output Voltage : ±12V dc
- Input Voltage Range : 9 → 36 V dc
- Input Voltage Nominal : 24 V dc
- Isolation Voltage : 6kV dc
- Power Rating : 3W
- Output Current : ±125mA
- Mounting Type : Through Hole
- Number of Outputs : 2
- Package : DIP
- Minimum Temperature : -40°C
- Maximum Temperature : +85°C
- Series : REC3
- CODE No.:162-2700
