63-6758-11 FPC/FFC Connector Female 34 Pole 0.5 mm 1 Set (2000 pcs) FH12-34S-0.5SH55
Electronic/Electrical Parts and Controll Equipments

63-6758-11 FPC/FFC Connector Female 34 Pole 0.5 mm 1 Set (2000 pcs) FH12-34S-0.5SH55

model: 63-6758-11
brand: Hirose

Product Description

Product Model: 63-6758-11Product Brand: Hirose Features […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-6758-11
Product Brand: Hirose

Features

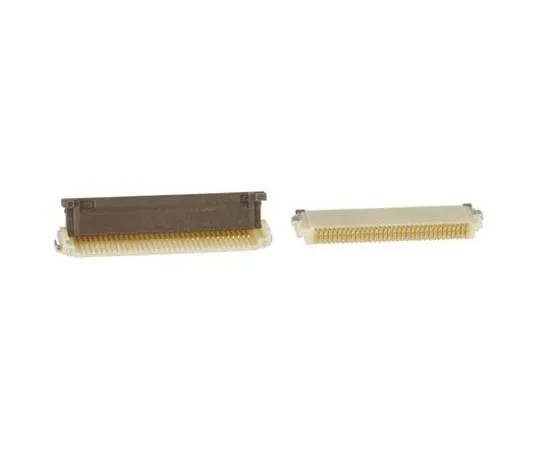

  • Hirose Electric FH12 Series 0.5 mm FPC/FFC Connector
  • The FH12 series ZIF (0 insertion force) FPC/FFC connectors are 0.5 mm pitch. This FPC connector features a rotating one-touch ZIF actuator for easy operation. When the actuator is fully closed, a clear feel and sound will confirm that it has engaged. The FH12 series FPC/FFC connectors feature a rotating one-touch ZIF actuator that occupies less area on the board than the slide lock type, enabling high-density mounting. The FH12 series FPC/FFC connectors are available in either a bottom contact configuration (FH12) or a top contact configuration (FH12 A).
  • Features and Advantages: Rotating one-touch ZIF actuator Clear touch and sound saving design for board mounting High density mounting Top/bottom mounting contact configuration
  • Applications: Suitable for a wide range of applications, including mobile phones, GPS, laptops, data terminals, LCD televisions, digital cameras, video cameras, and small portable devices connected to LCDs.

Spec

  • Quantity: 1 Reel (2000 Pieces)
  • Number of contacts: 34
  • Contact Material: Copper Phosphate
  • Pitch: 0.5 mm
  • Mounting type: surface mount
  • G***er: Female
  • Terminal Type: ZIF Bottom Contact
  • Body Orientation: Light Angle
  • Rated current: 500 mA
  • Rated voltage: 50 V ac
  • Series: FH12
  • Number of rows: 1
  • Contact Plating: Gold
  • Operating temperature Min: -40°C
  • RoHS Compliance Status: Compliance
  • Securities Code: 106-6363
