63-6690-66 Relay 12 V dc 1 c Contact 16 A Board Mounted RTH14012
model:
63-6690-66
brand:
TE Connectivity
Product Description
Product Model: 63-6690-66Product Brand: TE Connectivity […]
Contact Us
Product Details
Product Model: 63-6690-66
Product Brand: TE Connectivity
Features
- UL, CSA, VDE

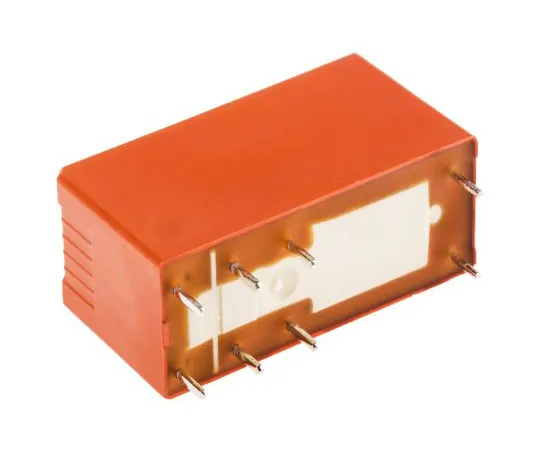

- TE Connectivity RTH Series High Temperature PCB Power Relay
- The RTH series high temperature PCB power relay can be ***d at an ambient temperature of 105 °C. These RTH series high temperature PCB power relays are through-hole circuit board mounted with 5 mm pins and an orange flux tight enclosure. These high-temperature power relay coils have a high sensitivity of 400 mW. These RTH series PCB power relays also feature enhanced insulation.
- Air Temperature 105 °C (Rated Load) High Sensitivity Coil 400 mW Insulation Enhanced RTII - Flux Resistant Creepage and Clearance: 10 mm 5 mm Pinning applications include oven and induction heater control
Spec
- Number of pieces: 1
- Coil voltage: 12 V dc
- Contact configuration: SPDT
- Switching current: 16 A
- Terminal type: through hole
- Coil resistance: 360 ohms
- Application Type: Power
- Length: 29 mm
- Depth: 12.7 mm
- Height: 15.7 mm
- Dimensions: 29 x 12.7 x 15.7 mm
- Operating temperature Min: -40 degrees C
- RoHS compliance status: Compliance
- Securities Code: 515 -622
