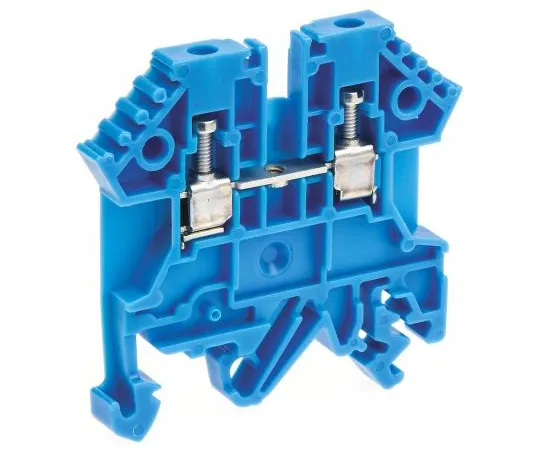

63-6729-80 RS PRO Blue Standard Din Rail Terminal, 22 → 12 AWG, 0.2 → 2.5mm², 800 V 802-783
Product Description
Product Model: 63-6729-80Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-6729-80
Product Brand: RS PRO
Features
- UL, CSA, NEMKO, GOST
- For compatibility, refer to jumper bar
- Standard feedthrough
- DIN rail mounting terminal. With a universal mounting foot clamp for both G-profile (BS5825:1990 asymmetrical) and top-hat profile (BS5584:1978 symmetrical) rails, it has a wide range of features for all applications. The 2.5 to 10 mm2 terminals have a common *** cover and partition, with a 10 pole jumper bar for cross connection, allowing easy attachment of markers on either side.
Spec
- Series:RK
- Wire Size:22 → 12 AWG
- Colour:Blue
- Termination Method:Screw
- Cable CSA:0.2 → 2.5mm²
- Current Rating:24A
- Voltage Rating:800 V
- Minimum Operating Temperature:-40°C
- Maximum Operating Temperature:+105°C
- CODE No.:802-783
