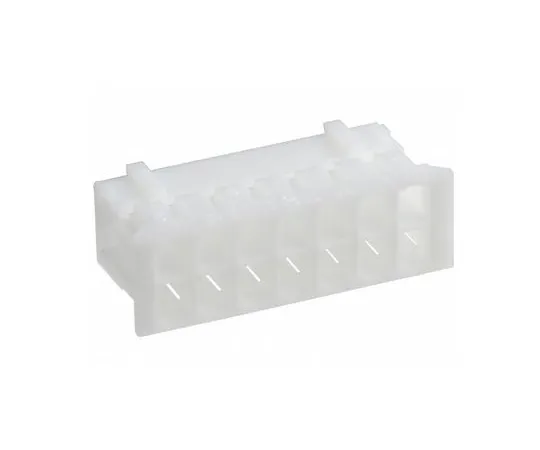

63-5179-74 JST PHD Female Connector Housing, 2mm Pitch, 14 Way, 2 Row PHDR-14VS
Product Description
Product Model: 63-5179-74Product Brand: JST Features JS […]
Contact Us
Product Details
Product Model: 63-5179-74
Product Brand: JST
Features
- JST PHD Series 2.0mm Crimp Receptacle Housings. PHD series 2.0 mm wire to board crimp receptacle housings with a double row contact configuration. These PHD 2.00 mm crimp connectors have a compact, low profile design with a height of just 8.8 mm after mating enabling them to meet the demand for high density and low profile connections. The crimp contacts for these PHD crimp housings need to be purchased separately, see stock numbers ; 688-1381 688-1381 and ; 688-1385 688-1385 typically.
Spec
- Quantity：1bag(10pieces)
- Number of Contacts : 14
- Number of Rows : 2
- Pitch : 2mm
- G***er : Female
- Mounting Type : PCB Mount
- Series : PHD
- For Use With : PHD Connector
- Body Orientation : Straight
- Length : 15.9mm
- Width : 7.3mm
- Depth : 5mm
- Housing Material : PA
- CODE No.:917-4692
