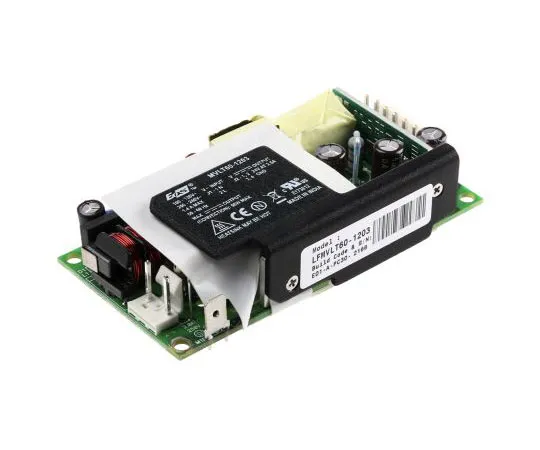

63-7565-78 EOS 60W 1 Output Embedded Switch Mode Power Supply SMPS, 2.5A, 24V dc Medical Approved Open Frame LFMVLT60-1203
Product Description
Product Model: 63-7565-78Product Brand: EOS Features IE […]
Contact Us
Product Details
Product Model: 63-7565-78
Product Brand: EOS
Features
- IEC950, EN60950, UL1950. VDE, UL Recognised Component for Canada ; US. Connectors are not supplied. MVLT110 current rating with Fan (150LFM). Power rating with forced airflow, requires ***r supplied 15CFM fan. 40W to 110W Medical Power Supplies, MVLT Series. Low leakage current ;250μA EMC to EN55022-B, CISPR22-B, FCC Part 15 Class B, EN50082-1 Power factor correction to EN61000-3-2 (MVLT80/110) Over voltage, power limit and short circuit protection Optional covers available, see stk nos. ; 377-6968 377-6968 or ; 396-1942 396-1942 Medical approval EN60601-1-2
Spec
- Quantity:1piece
- Output Voltage : 24V dc
- Output Current : 2.5A
- Power Rating : 60W
- Number of Outputs : 1
- Input Voltage : 180 → 264 V dc, 90 → 132 V ac
- Mounting Type : Chassis Mount
- Package Type : Open Frame
- Length : 101.6mm
- Width : 51.8mm
- Depth : 27.18mm
- Weight : 150g
- Maximum Temperature : +50°C
- Minimum Temperature : 0°C
- CODE No.:468-8086
