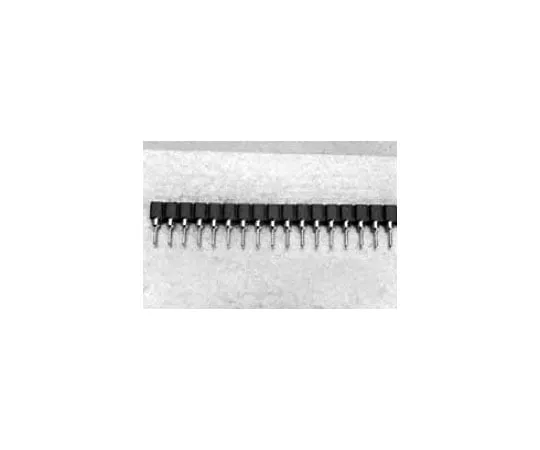

63-3120-11 Socket Pin PM Series (10 pcs) PM-1-20P
model:
63-3120-11
brand:
MAC EIGHT CO., LTD
Product Description
Product Model: 63-3120-11Product Brand: MAC EIGHT CO., […]
Contact Us
Product Details
Product Model: 63-3120-11
Product Brand: MAC EIGHT CO., LTD
Features
- Material: Pin Part: Internal Contact ... Beryllium Copper Body ... Brass Resin Part: PCT (UL94V-0) Plating Specifications: Contact: Gold Body: Tin
- Compatible male pin diameter (φ): 0.45~0.6
- Male pin insertion depth (mm): 3.7
- Number of mold connections: 20
- Resin color: black
- Connection pitch: 2.54
- Print plate mounting hole diameter (φ): 0.6~0.8
- Rated current: 1 A
- Rated voltage: 125 V. AC. DC
- Contact resistance: 10 mΩ or less
- Insulation resistance: 500 MΩ or more
- Insulation breakdown voltage: 1000 V AC. DC1 minute
- Insertion and removal times: 100 or more
- Insertion force (g or more): 70
- Removal force (g or more): 70
- Number of inserts: 10
- Socket pins arranged at 2.54 mm, 2 mm, 1.778 mm pitch.
Spec
