63-6850-04 Insulation DC-DC Converter Vout: 24 V dc 10.8 to 13.2 V dc 0.25 W 12 V dc IK1224SA
Product Description
Product Model: 63-6850-04Product Brand: XP Power Featur […]
Contact Us
Product Details
Product Model: 63-6850-04
Product Brand: XP Power
Features

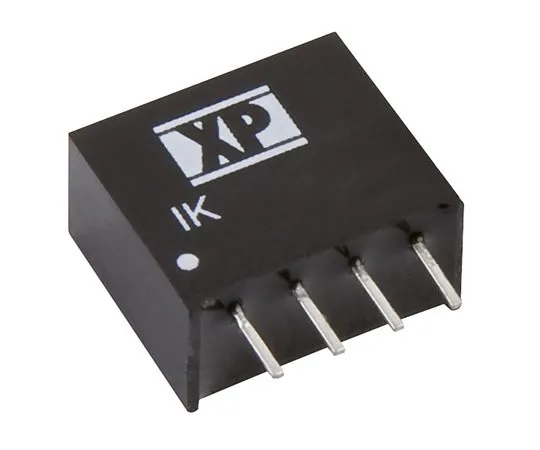

- XP Power-IK Series Insulated DC-DC Converter
- XP Power's IK series is a reliable single-output 0.25 W insulated DC-DC converter. The breakdown voltage is 1000 V dc and is provided in industry-standard SIP or DIP packages. All of these compact DC-DC converters have a wide range of operating temperatures from -40 °C to +85 °C and are available in smaller package sizes.
- 0.25 W Insulation DC-DC Converter with Insulation Voltage 1000 V dc, 3000 V dc Optional Single Output Small Package Operating Temperature Range: -40 → +85 °C Industry Standard SIP/DIP Packaging Maximum Efficiency: 70%
Spec
- Quantity: 1 piece
- Output Voltage: 24 V dc
- Input voltage range: 10.8 to 13.2 V dc
- Input voltage nominal: 12 V dc
- insulation Voltage: 1 kV dc
- Rating Power: 0.25 W
- Output current: 10.41 mA
- Mounting type: through hole
- Number of outputs: 1
- Efficiency: 54%
- Packages: SIP
- Load regulation: Maximum of 10%
- Maximum temperature: + 85 degrees C
- Series: IK
- RoHS compliance status: Compliance
- Securities Code: 122 -6951
