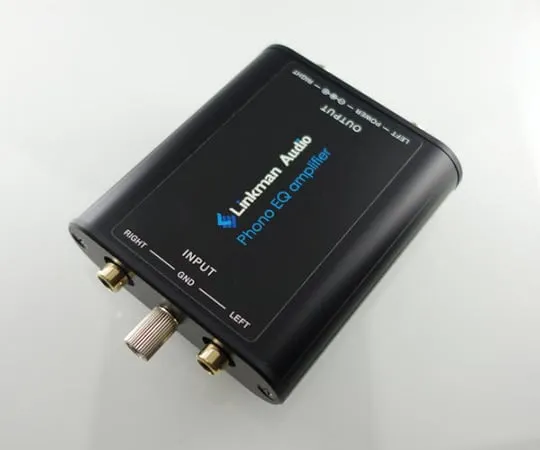

63-3116-05 LV2-PE Mark 2 phono equalizer amplifier  <  finished product  > LV2-PE-MK2
Electronic/Electrical Parts and Controll Equipments

63-3116-05 LV2-PE Mark 2 phono equalizer amplifier < finished product > LV2-PE-MK2

model: 63-3116-05
brand: Linkman

Product Description

Product Model: 63-3116-05Product Brand: Linkman Feature […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-3116-05
Product Brand: Linkman

Features

  • This Phonoicolizer amplifier is ***d to connect a record player using MM or MC cartridges to an amplifier device with a LINE input. It is responsible for raising the minute signal from the record player to a level that can be amplified by the preamplifier.
  • The signal output from the record player is very delicate, and the quality of the circuit and components will affect the sound quality. This product combines an orthodox NF-type RIAA equalizer amplifier with high-quality components and a class-A operation FET-type MC head amplifier.
  • The 12 V output from the AC adapter is turned into a ±12 V power supply by the latest high-performance regulator IC, resulting in a circuit configuration with a large maximum allowable input.
  • Although analog records have a large dynamic range, this maximum allowable input margin produces sound quality comparable to that of high-*** equalizer amplifiers.
  • Main Specifications
  • Rated Input: 2 mV (MC), 20 mV (MM) at 1 kHz
  • Rated Output: 2 V at 1 kHz
  • Maximum Input Voltage: 6 mV (MC), 60 mV (MM) at 1 kHz
  • Equalizer Deviation: 20~20 kHz, ±0.5dB
  • SN Ratio: 82dB (MC), 87dB (MM) (A Filter)
  • Input Impedance: 100 Ω (MC), 50 kΩ (MM)
  • Power Supply: DC12V, 1 A (AC Adapter Included)
  • Power Consumption: 0.5 W
  • External Dimensions: W82 x H27 x D114mm (Including Protrusions)
  • Mass: approx. 170 g (Body Only)
  • Accessories: AC Adapter (DC12 V), Owner's Manual
