Electronic/Electrical Parts and Controll Equipments

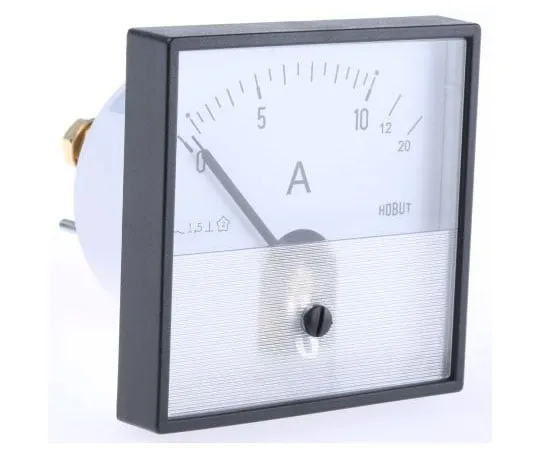

63-7468-29 HOBUT PD72SD Analogue Panel Ammeter 0/10/20A Direct Connected AC, 72mm x 72mm Moving Iron PD72MIS10A2/1-001
Product Description
Product Model: 63-7468-29Product Brand: HOBUT Features […]
Contact Us
Product Details
Product Model: 63-7468-29
Product Brand: HOBUT
Features
- mounting brackets. Ammeter overload is twice current rating - shown within (brackets) in scale range. AC Moving Iron Current and Voltage Meters. A series from 72 x 72 mm DIN sized panel meter with a horizontal scale, ***d widely in the panel building industry. Panel Meter with integrated, horizontal 90° scale Accuracy class 1.5 to BS89 IEC51 Scaled up to 40A direct connected Flame retardant case to UL94V0 Protection Class IP52 (front of panel) Fixing via single hole using ‘U ‘ clamp (anti-rotation pin supplied), or 4-point M3
Spec
- Quantity:1piece
- Maximum Value : 0/10/20A Direct Connected
- Current Type : AC
- Moving Element : Moving Iron
- Cutout Height : 72mm
- Cutout Width : 72mm
- Depth : 38.5mm
- Meter Accuracy : Class 1.5
- Minimum Temperature : -25°C
- Maximum Temperature : +40°C
- Measurement Range : 0/10/20A Direct Connected
- CODE No.:287-2043
