Electronic/Electrical Parts and Controll Equipments

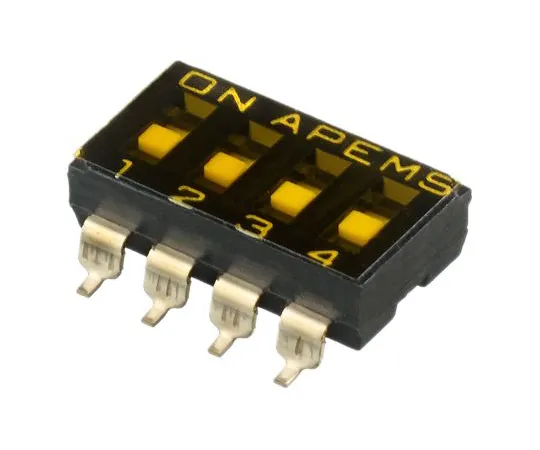

63-5159-10 4 Way Surface Mount DIP Switch SPST, Recessed Actuator Slide Actuator IKD0403000
Product Description
Product Model: 63-5159-10Product Brand: APEM Features A […]
Contact Us
Product Details
Product Model: 63-5159-10
Product Brand: APEM
Features
- Apem DIP Switch - IKD Series. The low profile IKD DIP switch is designed for reliable operation with positive detent action. Available 1 to 12 poles, surface mount or through hole mounting. Self cleaning wiping contacts Gold plated terminals SMT Gull wing or J b*** Process compatible IP reflow and wave solderable
Spec
- Quantity：1set(42pieces)
- Contact Configuration : SPST
- Contact Material : Phosphor Bronze (Moving Contact)
- Number of Positions : 4
- Mounting Type : Surface Mount
- Actuator Type : Recessed Actuator Slide
- Package Style : DIP
- Maximum Operating Temperature : +85°C
- Minimum Operating Temperature : -20°C
- Operating Temperature Range : -20 → +85°C
- Dielectric Strength : 500V ac
- CODE No.:877-2302
