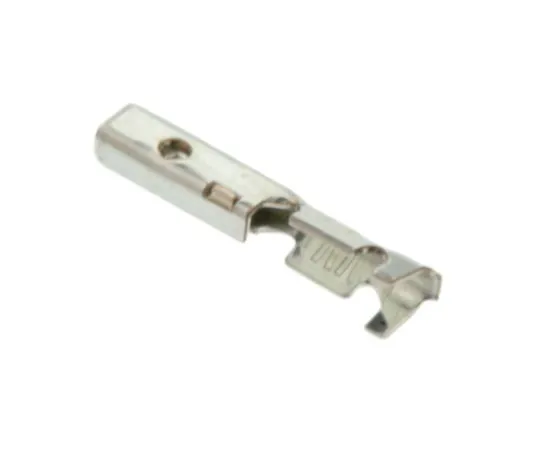

63-5132-21 JST JWPF Female Crimp Terminal Contact 22AWG SWPR-001T-P025 SWPR-001T-P025
Product Description
Product Model: 63-5132-21Product Brand: JST Features JW […]
Contact Us
Product Details
Product Model: 63-5132-21
Product Brand: JST
Features
- JWPF Loose Contacts and Cable Assemblies. These JWPF Contacts and Cable Assemblies are ***d with the respective JWPF Receptacle and Tab Housings: JWPF Receptacle Contact ; 820-1324 820-1324 ***d in JWPF Receptacle Housing ; 820-1289 820-1289 typical. JWPF Tab Contact ; 820-1327 820-1327 ***d in JWPF Tab Housing ; 820-1282 820-1282 typical. For a suitable Strip Feed Crimp Hand tool see stock number ; 602-8717 602-8717 or for discrete contacts ; 688-0852 688-0852. JWPF Cable Assemblies are pre-wired Contacts: ; 820-1286 820-1286 is 150 mm long with Receptacle Contacts fitted. ; 820-1295 820-1295 is 300 mm long with Receptacle Contacts fitted. ; 820-1298 820-1298 is 150 mm long with Tab Contacts fitted. ; 820-1292 820-1292 is 300 mm long with Tab Contacts fitted. For a suitable Extraction Tool see stock number ; 688-0843 688-0843 .
Spec
- Quantity：1bag(100pieces)
- G***er : Female
- For Use With : JWPF Connector Housing
- Series : JWPF
- Minimum Wire Size mm² : 0.1mm²
- Termination Method : Crimp
- Contact Plating : Tin
- Maximum Wire Size AWG : 22AWG
- Maximum Contact Resistance : 15mΩ
- Minimum Operating Temperature : -55°C
- Maximum Operating Temperature : +85°C
- CODE No.:820-1324
