Electronic/Electrical Parts and Controll Equipments

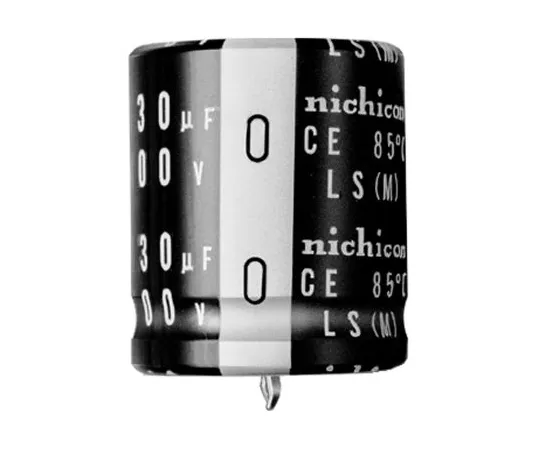

63-5145-75 Nichicon 4700μF 35V dc Aluminium Electrolytic Capacitor, Through Hole 22 (Dia.) x 30mm +85°C 22mm 10mm LLS1V472MELZ
Product Description
Product Model: 63-5145-75Product Brand: NICHICON Featur […]
Contact Us
Product Details
Product Model: 63-5145-75
Product Brand: NICHICON
Features
- Nichicon LS Series, General Purpose, Snap-In Aluminium Electrolytic Capacitors. Nichicon LS series are standard 85⁰C snap-in aluminium electrolytic capacitors. They can withstand 3000 h of rated ripple current with voltage ranging from 16 V to 450 V. These high performance and high capacitance parts are ideal for filtering and storing input current.
Spec
- Quantity：1bag(2pieces)
- Capacitance : 4700µF
- Voltage : 35V dc
- Mounting Type : Through Hole
- Technology : Electrolytic
- Dimensions : 22 (Dia.) x 30mm
- Height : 30mm
- Minimum Operating Temperature : -40°C
- Diameter : 22mm
- Maximum Operating Temperature : +85°C
- Lead Pitch : 10mm
- Series : LS
- Leakage Current : 1.21 mA
- CODE No.:846-7088
