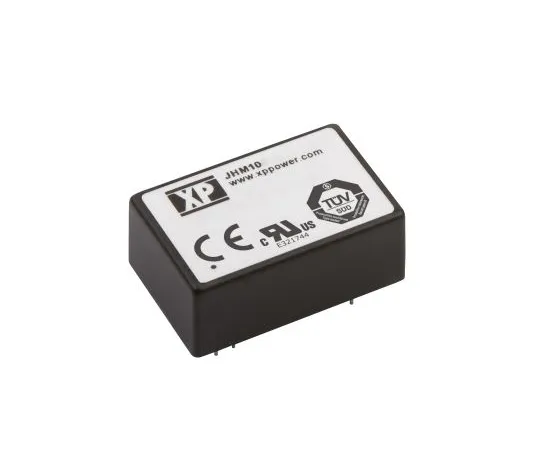

63-6855-17 Insulation DC-DC Converter Vout: ± 15 V dc 9 to 18 V dc 10 W 12 V dc JHM1012D15
Product Description
Product Model: 63-6855-17Product Brand: XP Power Featur […]
Contact Us
Product Details
Product Model: 63-6855-17
Product Brand: XP Power
Features
- XP Power-JHM10 Series Insulated DC-DC Converter
- XP Power's JHM10 series is a reliable 10 W insulated DC-DC converter. Included in the industry-standard DIP-24 package, this series boasts 4000 V ac of reinforced insulation and conforms to international medical standards. Patient leakage current is 2 μA, operating temperature is -40 to +80 °C, and it is certified by IEC60601-1, 3rd edition of safety standard.
- 10 W Insulated DC-DC Converter 4000 V ac Enhanced Insulation International Medical Standard Patient Leakage Current: 2 μA Operating Temperature Range: -40 → +80 °C IEC60601-1, Edition 3 Safety Standard DIP-24 Package EN55011 Level A, Substrate Mounting without External Parts
Spec
- Quantity: 1 piece
- Output Voltage: ± 15 V dc
- Input voltage range: 9 to 18 V dc
- Input voltage nominal: 12 V dc
- insulation Voltage: 4 kV ac
- Rating Power: 10 W
- Output current: ± 333 mA
- Mounting type: through hole
- Number of outputs: 2
- Medical standards certification: Yes
- Approved for railway ***: None
- Package: DIP
- Load regulation: ± 1 (10 to 100% Load)%, ± 2 (0 to 10% Load)%
- Maximum temperature: + 80 degrees C
- Series: JHM
- RoHS compliance status: Compliance
- Securities Code: 122 -7481
Related product recommendations
You may also be interested in the following products
Electronic/Electrical Parts and Controll Equipments
63-4919-53 TE Connectivity SL-156 Female Connector Housing, 3.96mm Pitch, 4 Way, 1 Row 640250-4
model: 63-4919-53
brand: TE Connectivity
Electronic/Electrical Parts and Controll Equipments
63-7817-03 Vishay Foil Resistors 1kΩ 0.4W Fixed Resistor ±0.01% ±2ppm/°C Y07061K00000T9L
model: 63-7817-03
brand: Vishay Foil Resistors
Electronic/Electrical Parts and Controll Equipments
63-6829-43 RS PRO Male USB A to Female USB A USB Extension Cable USB 2.0, 225.5mm 122-3031
model: 63-6829-43
brand: RS PRO
Electronic/Electrical Parts and Controll Equipments

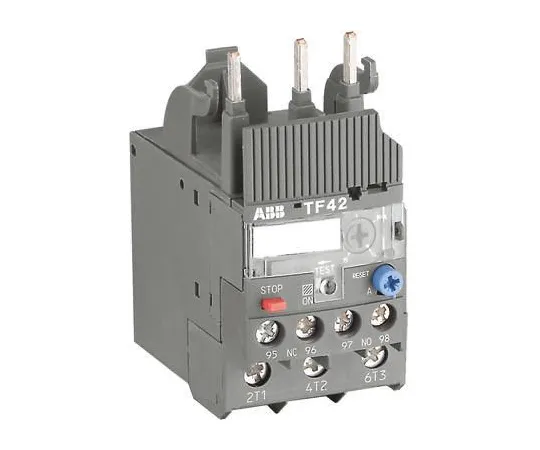

64-0347-32 ABB Thermal Overload Relay NO/NC, 35 → 40 A, 40 A, 2.8 W 1SAZ721201R1055 TF42-38
